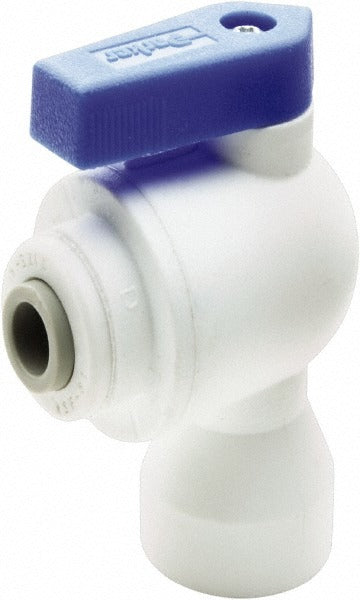

Parker PP6VFE6-MG Female Elbow Ball Valve 3/8 in

Product Description

The PARKER PP6VFE6-MG is a female elbow bi-directional manual ball valve designed for 3/8 inch pipe applications. Built with a polypropylene body and EPDM seals, this valve offers a full-port flow path that minimizes pressure drop across the connection. The wedge-style handle provides positive open and close control without tools. It connects via MNPT on one end and push-to-connect on the other, making it a practical choice for quick-assembly fluid control in plumbing, HVAC hydronic, and light industrial systems. Licensed plumbers and HVAC technicians are the typical installers for this type of fitting valve.

This valve suits residential and light commercial applications where a compact elbow configuration is needed at a 3/8 inch pipe junction. The bi-directional design allows flow in either direction, which simplifies installation orientation. The push-to-connect end reduces fitting count and speeds up assembly in tight spaces. It is commonly used in potable water lines, hydronic heating circuits, and filtered water systems where the polypropylene body and EPDM seals provide adequate chemical and temperature compatibility.

Key Features

• Full-port design minimizes flow restriction and pressure drop
• Bi-directional ball valve allows installation without regard to flow direction
• MNPT x push-to-connect ends combine threaded and tool-free connection in one fitting
• Polypropylene body offers corrosion resistance in water and mild chemical service
• EPDM seals provide flexibility and resistance to water-based media
• Wedge handle delivers tactile open/close confirmation at a glance

Compatibility

Designed as an OEM-style replacement or new-install manual shutoff valve for 3/8 inch pipe systems using MNPT x push-to-connect end configurations.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local plumbing codes and IPC guidelines. Shut off system water supply and relieve line pressure before removing any existing fitting or valve. Ensure the MNPT threads are wrapped with thread seal tape and tightened to the fitting manufacturer specification before engaging the push-to-connect end. Do not overtighten the threaded connection into a polypropylene body, as the material is not rated for the same torque range as brass or steel fittings.
