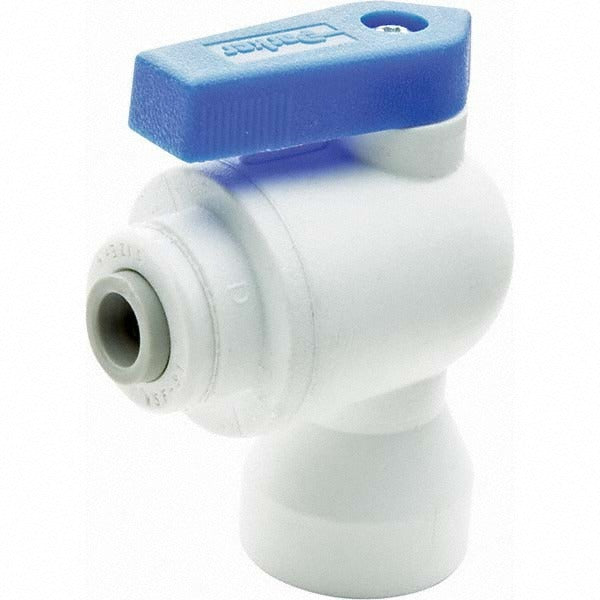

Parker PP6VFE2-MG Manual Ball Valve 3/8 Inch Mnpt Push-to-connect

Product Description

The PARKER PP6VFE2-MG is a manual ball valve designed for inline flow control in fluid handling systems. It features a polypropylene body with an MNPT inlet and a push-to-connect outlet, allowing quick tubing installation without additional fittings. The lever handle provides a clear open/closed indication and positive shutoff. Compatible with 3/8-inch outside diameter tubing, this valve suits water treatment, filtration, and light industrial plumbing applications where a lightweight, corrosion-resistant valve body is required. Licensed plumbers and fluid system technicians are the typical installers.

This valve is suited for residential and light commercial fluid systems, including water filtration lines, reverse osmosis plumbing, and similar low-pressure plumbing circuits. The push-to-connect outlet simplifies tubing connections in tight spaces where threaded fittings would be difficult to access. The MNPT male threaded inlet connects directly to standard female NPT ports on manifolds, filters, and inline fittings.

Key Features

• Polypropylene body offers corrosion resistance for water-based fluid systems
• MNPT x push-to-connect end configuration speeds up installation with 3/8-inch OD tubing
• Lever handle gives clear visual indication of valve position
• Compact form factor fits in confined plumbing runs
• Ball valve design provides full-bore shutoff with a quarter-turn operation

Compatibility

Designed as an OEM-style replacement manual ball valve for systems using 3/8-inch outside diameter tubing with MNPT threaded inlet connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified fluid systems technician. Depressurize and drain the system before removing or installing the valve. Apply appropriate thread sealant to the MNPT threads per IPC guidelines before tightening. Ensure the push-to-connect port tubing is cut cleanly and squarely before insertion to achieve a proper seal.
