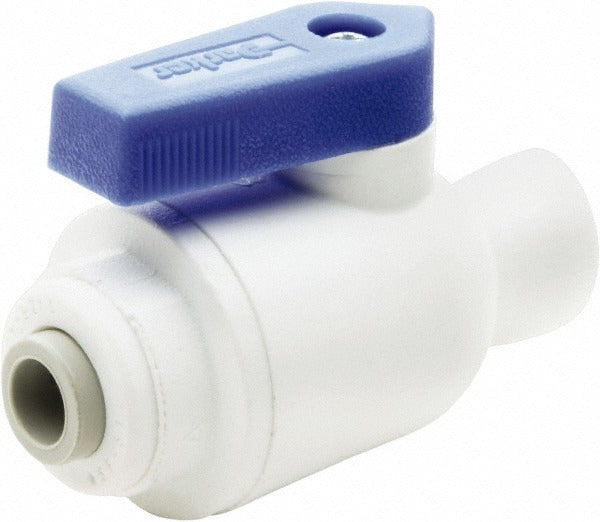

Parker PP6VFC6-MG Ball Valve 3/8 Inch Full Port Mnpt Push-to-connect

Product Description

The PARKER PP6VFC6-MG is a female connector bi-directional manual ball valve designed for 3/8 inch pipe applications requiring a full-port, push-to-connect configuration. Built with a polypropylene body and EPDM seals, this valve handles bi-directional flow and is operated via a wedge-style handle for quick manual shutoff. The full-port design minimizes pressure drop across the valve, making it well suited for systems where flow restriction must be kept low. Licensed plumbers and HVAC technicians typically install this valve in fluid-handling systems where a reliable manual isolation point is required.

This valve is appropriate for residential and light commercial plumbing, HVAC, and fluid distribution applications where a 3/8 inch push-to-connect termination is used on one end and a male NPT thread on the other. The MNPT x Push-To-Connect end configuration allows a technician to thread the valve into a fitting or manifold on one side while connecting tubing without additional tooling on the push-to-connect side. The polypropylene body makes it suitable for water and compatible fluid service where a lightweight, corrosion-resistant valve body is preferred.

Key Features

• Full-port ball valve minimizes flow restriction and pressure drop
• Bi-directional operation allows installation without regard to flow direction
• MNPT x Push-To-Connect end configuration for tool-free tubing connection on one end
• Polypropylene body provides corrosion resistance and light weight
• EPDM seals offer compatibility with water and many common fluid media
• Wedge-style handle provides clear open/closed indication and positive shutoff

Compatibility

Designed as an OEM-style replacement or new-installation valve for 3/8 inch pipe and tubing systems using MNPT x Push-To-Connect terminations in plumbing and HVAC fluid-distribution applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable IPC and local plumbing codes. Shut off system pressure and depressurize the line before installing or servicing this valve. Thread the MNPT end into the mating female fitting using appropriate thread sealant or tape; do not overtighten the push-to-connect connection as polypropylene fittings can crack under excessive force. Verify the tubing outside diameter is compatible and that the tubing end is cut cleanly and squarely before inserting into the push-to-connect port.
