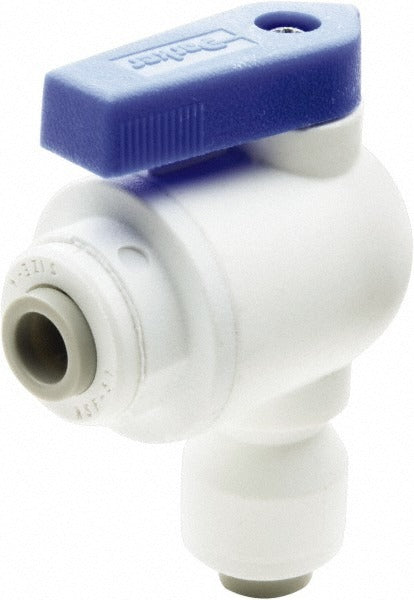

Parker PP6VEU6-MG Elbow Union Full Port Ball Valve 3/8 in

Product Description

The PARKER PP6VEU6-MG is a full port, elbow union bi-directional manual ball valve designed for push-to-connect tubing installations. It features a polypropylene body and EPDM seals, making it well suited for fluid handling applications where corrosion resistance and reliable shutoff are required. The wedge-style handle allows for quick quarter-turn operation, and the full port design minimizes flow restriction through the valve body. This valve is typically installed by plumbing, HVAC, or industrial service technicians working with 3/8 inch OD push-to-connect tubing systems.

This valve is intended for use in systems utilizing 3/8 inch outside diameter push-to-connect tubing. Its elbow union configuration allows it to serve as both a directional fitting and an inline shutoff point, reducing the number of separate fittings needed at a service location. The bi-directional design permits flow in either direction, giving installers flexibility during system layout. It is commonly found in residential and light commercial plumbing, HVAC condensate, and fluid distribution applications.

Key Features

• Full port ball valve minimizes pressure drop across the valve body
• Push-to-connect x push-to-connect end connections for tool-free tubing installation
• Elbow union body combines a directional fitting and shutoff valve in one component
• Bi-directional flow accommodates flexible system plumbing orientations
• Polypropylene body provides chemical and corrosion resistance
• EPDM seals offer broad compatibility with water-based and mild chemical fluids

Compatibility

Designed for use with 3/8 inch outside diameter push-to-connect tubing systems in plumbing, HVAC, and fluid distribution applications.

Installation Notes

Installation should be performed by a qualified plumbing or HVAC technician. Shut off system pressure and depressurize the line before removing or installing the valve. Ensure tubing ends are cut cleanly and squarely and are free of burrs before inserting into the push-to-connect fittings. Verify that the selected valve is rated for the working pressure and fluid type present in the system.
