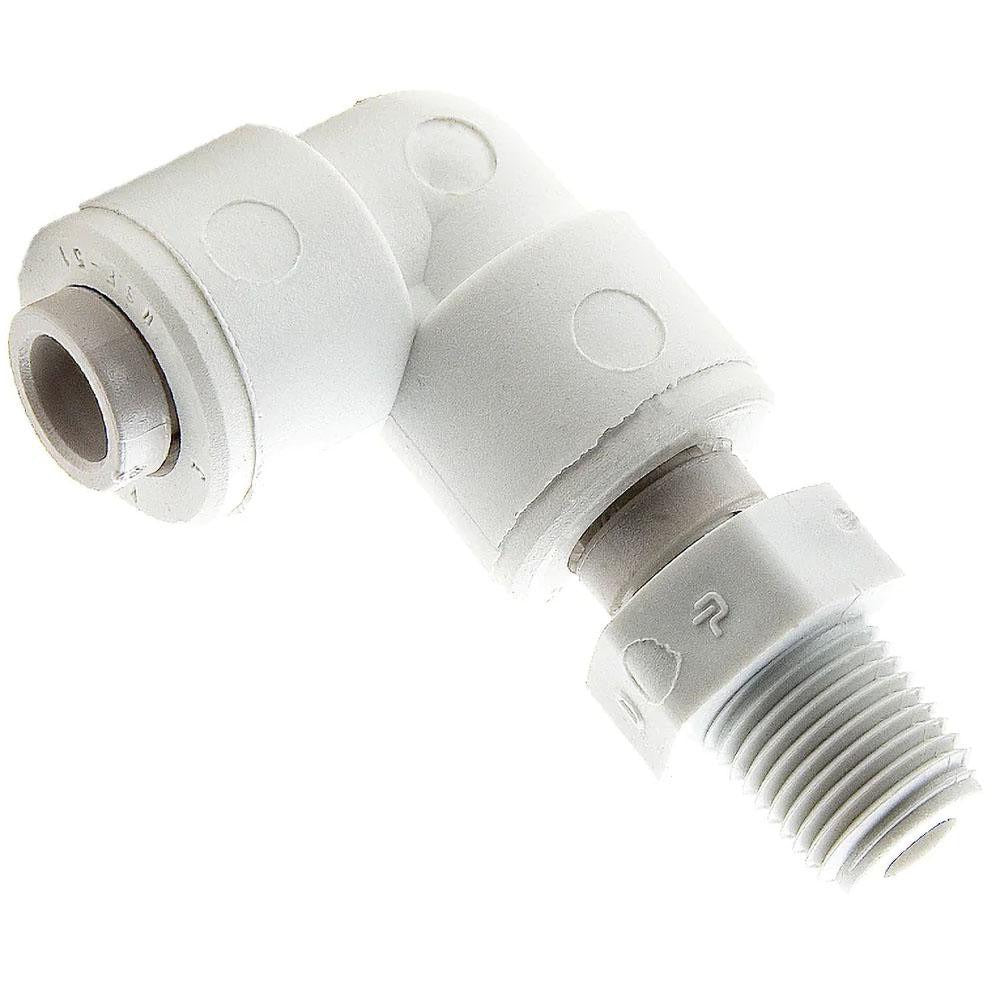

Parker PP6MES6 Male Swivel Elbow Fitting 3/8 in Od

Product Description

The PARKER PP6MES6 is a push-to-connect male swivel elbow tube fitting designed to join tubing to threaded pipe connections at a 90-degree angle. Constructed from white polypropylene, this fitting accepts 3/8 inch outside diameter tubing and connects to a 3/8 inch NPTF male thread. The swivel design allows for easy orientation and alignment during assembly without the need to rotate the tubing or pipe. Rated to 150 psi, this fitting suits low-pressure fluid handling applications where a leak-free, tool-free tube connection to a pipe port is required. Plumbers, HVAC technicians, and irrigation installers working with compatible polypropylene push-fit systems rely on this style of fitting for quick, reliable connections.

This fitting is suited for residential and light commercial plumbing, HVAC condensate lines, water treatment systems, and similar low-pressure fluid distribution applications. The push-to-connect end provides fast tube insertion and secure retention without ferrules or compression nuts. The male NPTF threaded end seals reliably to standard pipe ports and valve bodies. Its polypropylene construction offers good chemical resistance for use with water, mild chemicals, and other compatible media. This is a single-piece fitting sold individually.

Key Features

• Push-to-connect design allows tool-free tube insertion for fast assembly
• Swivel elbow geometry enables alignment adjustment without rotating the pipe or tube
• 3/8 inch OD tube port with 3/8 inch NPTF male thread end
• 150 psi pressure rating suitable for low-pressure fluid systems
• White polypropylene construction offers chemical resistance and lightweight handling
• Compact, lightweight fitting at 0.04 pounds

Compatibility

Designed as an OEM-style push-to-connect fitting for 3/8 inch OD tubing systems using NPTF threaded pipe ports in residential and light commercial plumbing or fluid handling installations.

Installation Notes

Installation is performed by plumbers or HVAC technicians working on low-pressure fluid lines. Shut off and depressurize the system before connecting or disconnecting the fitting. Ensure the tube end is cleanly cut, deburred, and inserted fully into the push-connect port to achieve a proper seal. NPTF threads are designed for dry-seal connections, but follow applicable IPC or local plumbing code requirements for thread sealant use in your jurisdiction.
