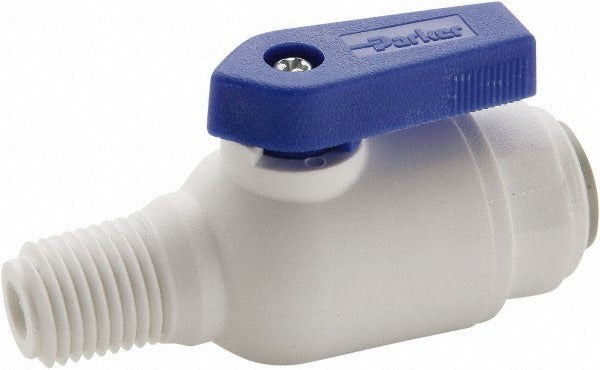

Parker PP4VMC4-MG Ball Valve 1/4 Inch Mnpt Push-to-connect

Product Description

The PARKER PP4VMC4-MG is a bi-directional manual ball valve designed for 1/4 inch pipe connections in fluid control systems. It features a full port design with MNPT x Push-To-Connect end connections, allowing for straightforward installation without additional fittings on the push-to-connect side. The polypropylene body and EPDM seals make it suited for water and compatible fluid applications where corrosion resistance matters. Rated to 150 psi and 10 bar, this valve handles typical low-to-medium pressure service conditions. A wedge-style handle provides positive open and close indication. Licensed plumbers and fluid system technicians are the primary installers for this type of inline shutoff.

This valve is intended for residential and light commercial plumbing, water treatment, filtration, and fluid distribution systems where a compact manual shutoff is needed. The push-to-connect end simplifies tubing connection during install, making it a practical choice for tight spaces or retrofit work. NSF-51 and NSF-61 certifications confirm suitability for potable water and food-equipment contact applications, which is relevant in water treatment and commercial kitchen installations.

Key Features

• Full port design minimizes flow restriction across the valve body
• MNPT x Push-To-Connect end configuration reduces fitting count at installation
• Polypropylene body resists corrosion in water and compatible fluid service
• EPDM seals provide durable performance across the rated temperature range
• NSF-51 and NSF-61 certified for potable water and food-contact applications
• Wedge handle allows quick manual actuation and clear position indication

Compatibility

Designed as an OEM-style replacement or new-install manual shutoff valve for 1/4 inch pipe systems using MNPT x Push-To-Connect connections in plumbing, water treatment, and fluid distribution applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified fluid system technician in accordance with applicable IPC and local plumbing codes. Shut off the water supply and relieve system pressure before removing any existing valve or making new connections. Ensure the MNPT threads are properly sealed with thread tape or an approved thread sealant before tightening. Do not exceed the rated working pressure of 150 psi.
