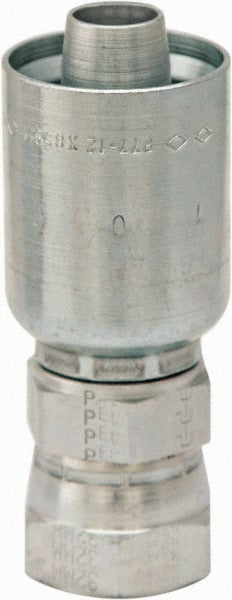

Parker PP-00764 Female Jic 37 Swivel Straight Fitting

Product Description

The PARKER PP-00764 is a female JIC 37-degree swivel straight hydraulic hose fitting machined from steel. It accepts a 1-7/8-12 JIC threaded connection and is rated for service up to 5,000 psi. The swivel design allows the fitting to rotate during assembly, reducing hose twist and making installation easier in tight or angled plumbing runs. This fitting is sized for a -24 hose with a 1.5-inch hose diameter. It is used in high-pressure hydraulic circuits and is installed by hydraulic technicians, mobile equipment mechanics, and industrial maintenance professionals.

This fitting is suited for high-pressure hydraulic plumbing in mobile, agricultural, construction, and industrial applications. The straight configuration and swivel end make it a practical choice for hose assemblies that require precise alignment at connection points. With a threaded connection type and steel construction, it is built for demanding fluid-power environments where pressure integrity and durability are required.

Key Features

• Female JIC 37-degree swivel end allows rotation during assembly to prevent hose twist
• Rated to 5,000 psi working pressure for high-demand hydraulic circuits
• Straight configuration for direct inline hose-to-port connections
• Steel construction for durability in high-pressure fluid-power applications
• Compatible with Parker 387, 487, 787, and 797 series hoses (TC and ST variants)
• Meets ISO 12151-5 standards and is subject to California Proposition 65 requirements

Compatibility

Designed for use with Parker 387/TC/ST, 487/TC/ST, 787/TC/ST, and 797/TC/ST hydraulic hoses with a -24 hose size and 1.5-inch hose diameter.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. The swivel end should be hand-tightened first, then torqued with proper hydraulic fitting wrenches — do not use the hose to leverage the fitting into place. Inspect the JIC seat and threads for damage or contamination before assembly.
