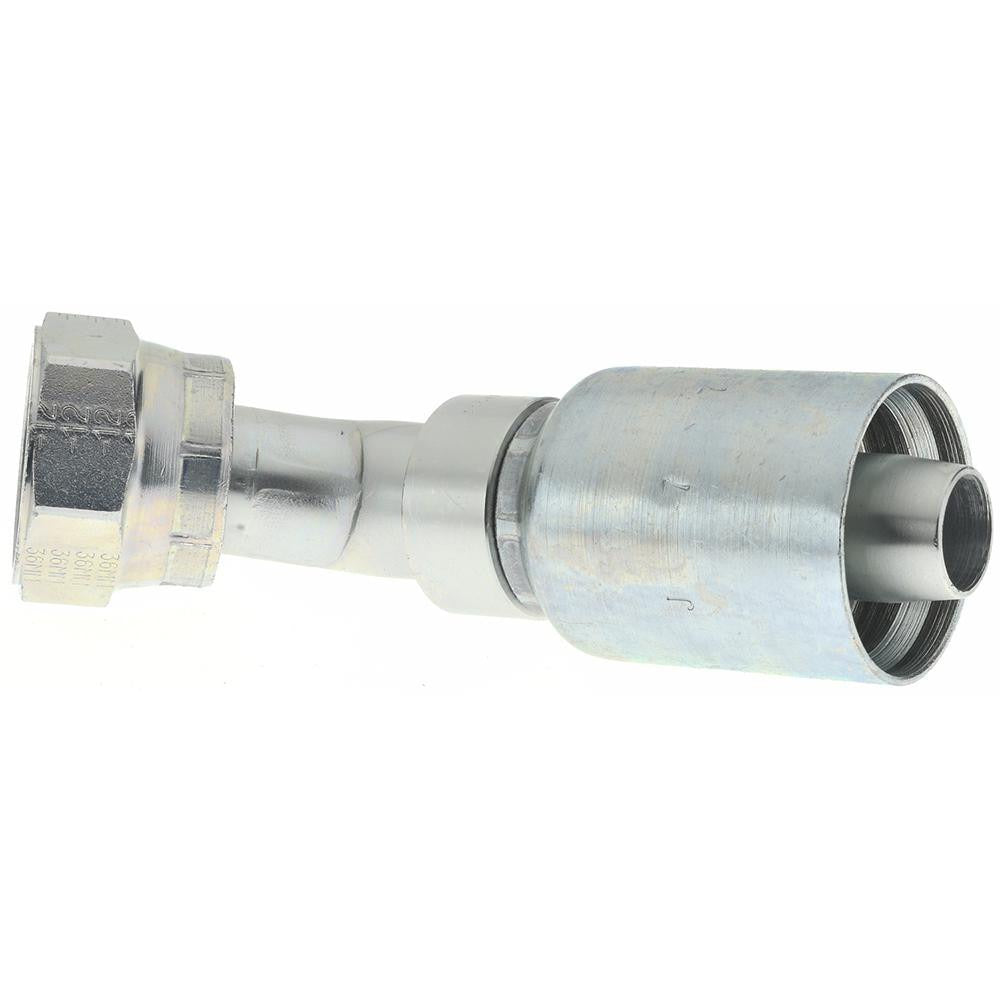

Parker PP-00582 Hydraulic Hose Fitting 45 Degree Elbow

Product Description

The PARKER PP-00582 is a 45-degree elbow hose fitting designed for high-pressure hydraulic systems. Built from steel with a Seal-Lok end connection and threaded interface, it provides a reliable, leak-resistant joint between hydraulic hose assemblies and ports. The fitting accepts a 1.25-inch (1-1/4 inch) inside diameter hose and uses a 1-11/16-12 thread size. It is part of the Series 77 fitting family. Installation is performed by hydraulic system technicians and industrial mechanics working on mobile or stationary hydraulic circuits.

This fitting is used in applications where a 45-degree change in hose routing direction is required. It is compatible with Parker 387, 487, 787, and 797 hose series in TC and ST configurations. Typical install scenarios include mobile equipment hydraulics, industrial machinery, and fluid power systems where hose routing must navigate space constraints. The Seal-Lok design minimizes the risk of leakage at the connection point under dynamic pressure conditions.

Key Features

• 45-degree elbow geometry for angled hose routing in tight installations
• Seal-Lok end connection type for reliable, leak-resistant sealing
• 1-11/16-12 threaded interface for secure port attachment
• Steel construction for durability in high-pressure hydraulic environments
• Series 77 fitting compatible with multiple Parker hose series
• Meets ISO 12151-1-SWE45 standard and California Proposition 65 requirements

Compatibility

Designed for use with Parker 387 TC ST, 487 TC ST, 787 TC ST, and 797 TC ST hydraulic hose series with a 1.25-inch inside diameter (Hose Size 20).

Installation Notes

This fitting should be installed by a qualified hydraulic technician or industrial mechanic. Always depressurize and isolate the hydraulic circuit completely before disconnecting or assembling any fittings. Use appropriate torque tooling and follow the fitting manufacturer torque specifications for the thread size. Inspect the Seal-Lok sealing surface for nicks or contamination before assembly to ensure a proper seal.
