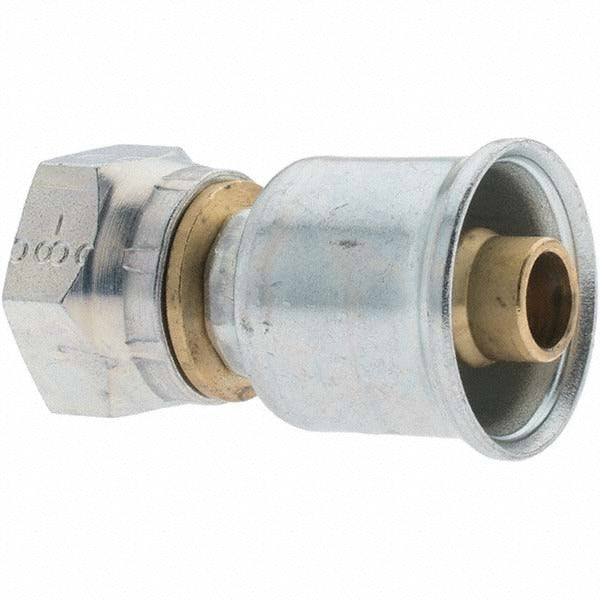

Parker PP-00428 Hydraulic Hose Swivel Fitting 8mm Female

Product Description

The PARKER PP-00428 is a female swivel fitting designed for hydraulic hose assemblies. It accepts an 8 mm hose with a 13/32-inch hose diameter and threads onto mating components using a 3/4-20 thread. The body is machined from brass, which provides corrosion resistance in fluid-power systems carrying hydraulic oil, water-glycol blends, or similar media. Swivel fittings allow the hose to rotate freely during routing and connection, reducing torsional stress on the hose and assembly. This fitting is typically installed by hydraulic system technicians, equipment mechanics, or plumbers working on low-to-medium-pressure fluid lines. It ships in a package quantity of two.

The PP-00428 is suited for use in residential, commercial, and light industrial hydraulic circuit assemblies where an 8 mm hose terminates at a 3/4-20 threaded port. Common applications include mobile equipment hydraulic lines, fluid-transfer plumbing, and machinery hydraulic circuits where swivel articulation is required at the connection point. The female swivel design enables easy hand-start engagement before final torque, which simplifies installation in confined spaces.

Key Features

• Female swivel configuration allows hose rotation and reduces assembly torsion
• Brass construction resists corrosion in oil and water-based hydraulic media
• 8 mm hose size with 13/32-inch hose diameter for precise hose fitment
• 3/4-20 thread size for secure, leak-resistant port connection
• Sold in a package quantity of two, supporting paired or redundant installations

Compatibility

Designed as an OEM-style swivel fitting for hydraulic hose assemblies using 8 mm hose and a 3/4-20 threaded connection port.

Installation Notes

Installation is typically performed by a qualified hydraulic technician or licensed mechanic. Always depressurize and bleed the hydraulic circuit fully before removing or installing any fitting. Use appropriate thread sealant or tape rated for hydraulic service if required by the system specification. Inspect the mating port threads for damage before assembly and do not cross-thread the swivel onto the port.
