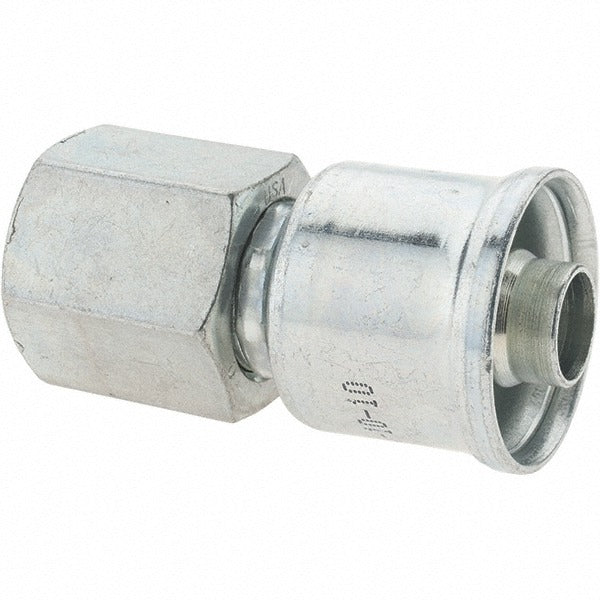

Parker PP-00419 Female Sae 45 Jic Swivel Fitting 1/2 in

Product Description

The PARKER PP-00419 is a straight female SAE 45-degree JIC swivel fitting designed for hydraulic hose assemblies. Built from steel, this fitting connects 1/2-inch hydraulic hose to hydraulic lines using a 7/8-14 thread. The swivel design allows the fitting to rotate during assembly, reducing hose twist and simplifying routing in tight or angled installations. Licensed hydraulic technicians, industrial mechanics, and fluid-power specialists install this type of fitting in fixed and mobile hydraulic circuits where leak-free performance is required at the connection point.

This fitting is suited for hydraulic systems that use SAE 45-degree JIC flare connections, a standard widely used in industrial machinery, agricultural equipment, and mobile hydraulic applications. The 7/8-14 thread size is consistent with -8 JIC port sizing. The straight body orientation is appropriate where hose and port are aligned or where hose routing does not require an angled adapter. It is sold in a package quantity of two units.

Key Features

• SAE 45-degree JIC swivel design reduces hose twist during assembly
• Steel construction for durability in hydraulic service environments
• Straight female body for inline hose-to-port connections
• 7/8-14 thread size matches standard -8 JIC port dimensions
• Compatible with 1/2-inch hydraulic hose inner diameter
• Sold in a package of two fittings per order

Compatibility

Designed as a standard SAE 45-degree female JIC swivel hose fitting for use with 1/2-inch hydraulic hose and 7/8-14 threaded JIC ports in hydraulic fluid-power systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid-power mechanic. Depressurize and lock out the hydraulic system completely before removing or installing any fittings. Inspect the JIC flare seat and mating surfaces for damage or debris before assembly. Do not over-torque the swivel nut, as JIC flare connections rely on metal-to-metal seating, not thread crush, for a proper seal.
