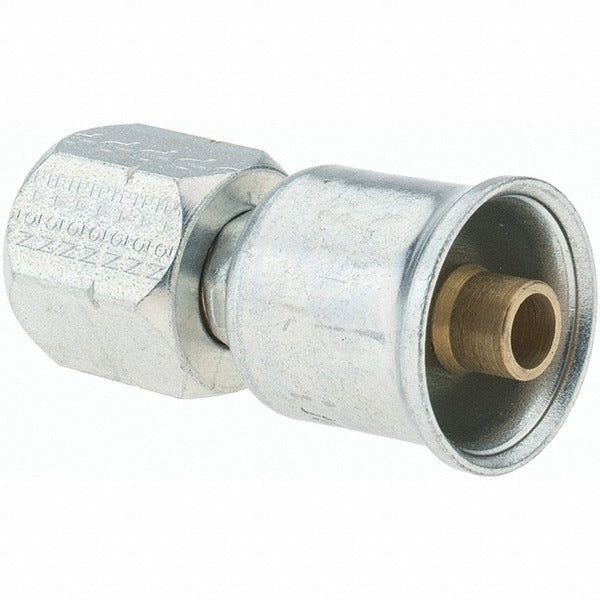

Parker PP-00417 Female Sae 45 Jic Swivel Fitting 5/16 in

Product Description

The PARKER PP-00417 is a straight female SAE 45 degree JIC swivel fitting designed for hydraulic hose assemblies. Machined from steel, this fitting connects a 5/16-inch hose to a 5/8-18 threaded port using a swivel-style Female JIC interface. The 45-degree JIC seat creates a leak-resistant metal-to-metal seal suited to moderate and high-pressure hydraulic circuits. The swivel design allows the hose to be positioned and torqued without twisting the hose body during assembly. Licensed hydraulic technicians and fluid power mechanics install this type of fitting in mobile equipment, industrial machinery, and stationary hydraulic systems where a straight-entry hose termination is required.

This fitting is appropriate for hydraulic hose assemblies requiring a 5/16-inch hose ID and a 5/8-18 JIC female thread engagement. It is commonly used in agricultural equipment, construction machinery, lift systems, and industrial hydraulic power units where SAE 45-degree JIC connections are specified. The straight configuration suits applications where a direct inline hose-to-port connection is preferred over angled fittings. Sold in a package of two units per order.

Key Features

• Straight female SAE 45 degree JIC swivel fitting for reliable metal-to-metal sealing
• 5/16-inch hose diameter compatibility for standard hydraulic hose assemblies
• 5/8-18 thread size for direct engagement with JIC-threaded hydraulic ports
• Steel construction for strength and durability in hydraulic service
• Swivel design prevents hose twist during installation and torquing
• Sold as a package of two fittings per unit

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using 5/16-inch hose ID and SAE 45 degree JIC female swivel connections with a 5/8-18 thread size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the JIC seat and threads for damage before assembly, and use appropriate torque values specified by the system OEM or applicable SAE standards. Do not over-torque the swivel nut, as this can damage the 45-degree seating surface and lead to leakage.
