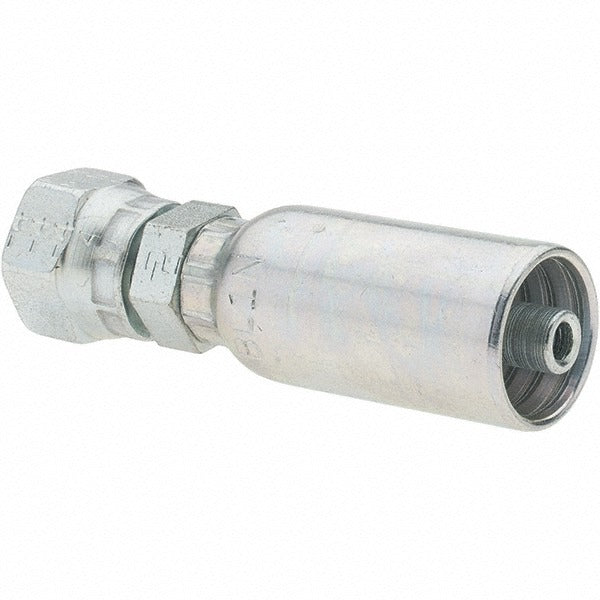

Parker PP-00387 Hydraulic Hose Swivel Fitting 0.25 in

Product Description

The PARKER PP-00387 is a straight swivel fitting designed for hydraulic hose assemblies in high-pressure fluid power systems. It features a Seal-Lok face seal connection with a 9/16-18 threaded interface and accepts hoses with a 0.25 inch (1/4 inch) inside diameter. At 2.59 inches overall length, this fitting is built from steel for durability under hydraulic system pressures. The Seal-Lok design provides a leak-resistant face seal connection, making it a reliable choice for fluid power technicians working on mobile or industrial hydraulic lines. This fitting ships in a package quantity of five units.

This fitting is suited for use in mobile equipment, industrial machinery, and stationary hydraulic power units where a swivel-style hose end is required to reduce hose stress and allow rotational alignment during installation. It is compatible with PARKER 801, 836, and 611HT hydraulic hoses as stated by the manufacturer. The straight configuration makes it a direct in-line hose termination fitting for standard hydraulic plumbing work.

Key Features

• Seal-Lok face seal design for leak-resistant hydraulic connections
• Straight swivel configuration reduces hose strain during assembly
• Steel construction for high-pressure hydraulic service
• Accepts 1/4 inch (0.25 inch) ID hydraulic hose
• 9/16-18 thread size for standard hydraulic port fitment
• Meets ISO 12151-1-SWSB standard

Compatibility

Rated for use with PARKER 801, 836, and 611HT hydraulic hoses. Conforms to ISO 12151-1-SWSB dimensional and performance standards for hose fittings.

Installation Notes

This fitting is installed by qualified hydraulic technicians or fluid power specialists. Depressurize and isolate the hydraulic circuit completely before disconnecting or assembling any hose fittings. Ensure mating surfaces are clean and free of debris before completing the Seal-Lok face seal connection. Follow the equipment manufacturer's assembly procedures and applicable fluid power standards for proper installation.
