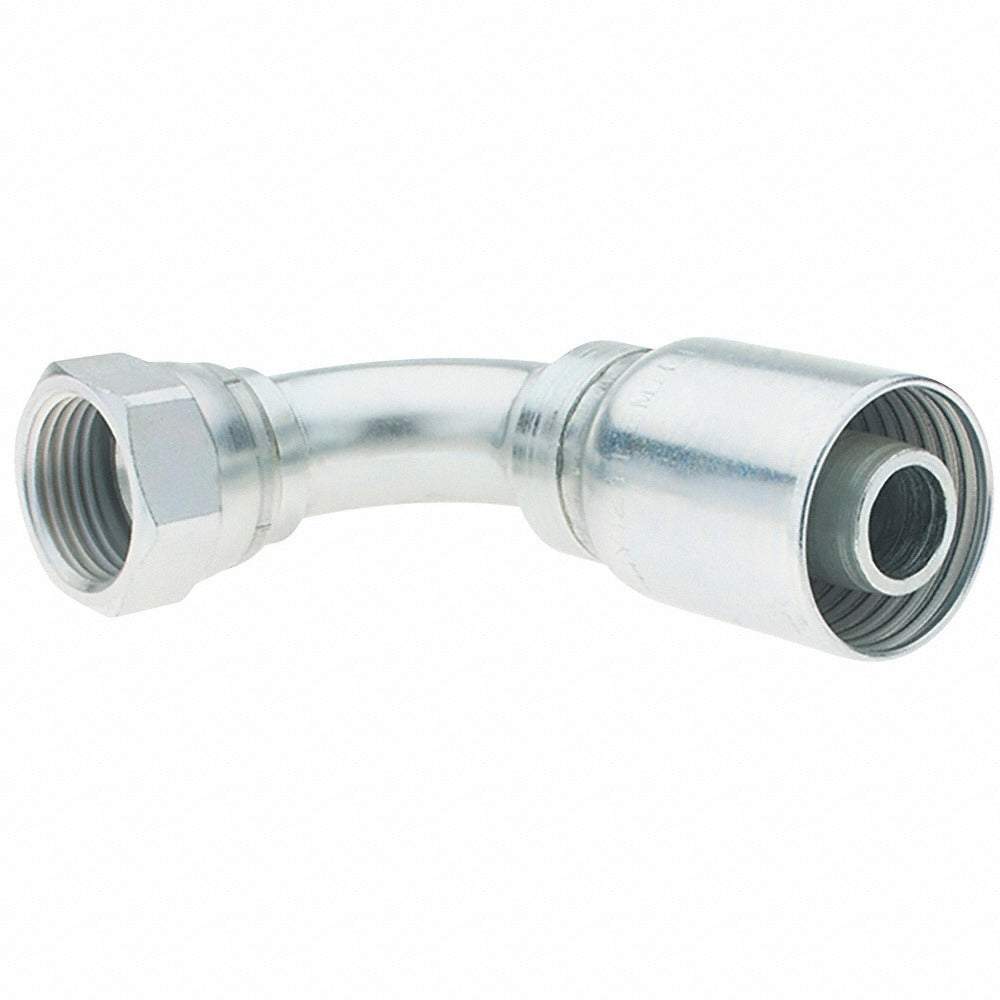

Parker PP-00385 Female Jic Swivel 90 Elbow 3/4 in Steel

Product Description

The PARKER PP-00385 is a female JIC swivel 90-degree elbow fitting designed for hydraulic hose assemblies. Machined from steel, it connects a 3/4-inch hose end to a 1-1/16-12 JIC female threaded port at a 90-degree angle. The swivel design allows the hose to be positioned and torqued without twisting the hose body, which is critical in tight routing scenarios common in mobile hydraulic equipment, industrial machinery, and off-highway vehicle systems. Licensed hydraulic technicians and fluid power mechanics install this fitting as part of hose assembly fabrication or field repair.

This fitting is suited for hydraulic systems requiring a 90-degree directional change at the hose-to-port connection. It accepts a 12 mm hose size designation and a 3/4-inch hose inner diameter. The 1-1/16-12 JIC thread conforms to the standard 37-degree flare seating geometry used widely in mobile and industrial hydraulic circuits. Typical applications include agricultural equipment, construction machinery, and industrial hydraulic power units where space constraints prevent straight hose runs.

Key Features

• 90-degree swivel elbow allows precise hose routing without hose body twist
• Female JIC 37-degree flare thread for leak-resistant metal-to-metal seating
• 1-1/16-12 thread size for compatibility with standard JIC porting
• 3/4-inch hose diameter accommodates high-flow hydraulic circuits
• Steel construction provides strength and durability in demanding hydraulic environments
• Package quantity of 2 per unit for efficient stocking and repair inventory

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using 3/4-inch hose with a 1-1/16-12 JIC female swivel 90-degree elbow end connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic familiar with JIC fitting assembly practices. Depressurize and lock out the hydraulic system completely before removing or installing any fittings. Inspect the 37-degree flare seat on both the fitting and mating port for nicks or damage before assembly. Tighten to the fitting manufacturer's recommended flat-to-flat specification for the thread size; do not over-tighten, as JIC fittings rely on metal-to-metal flare seating rather than thread engagement for sealing.
