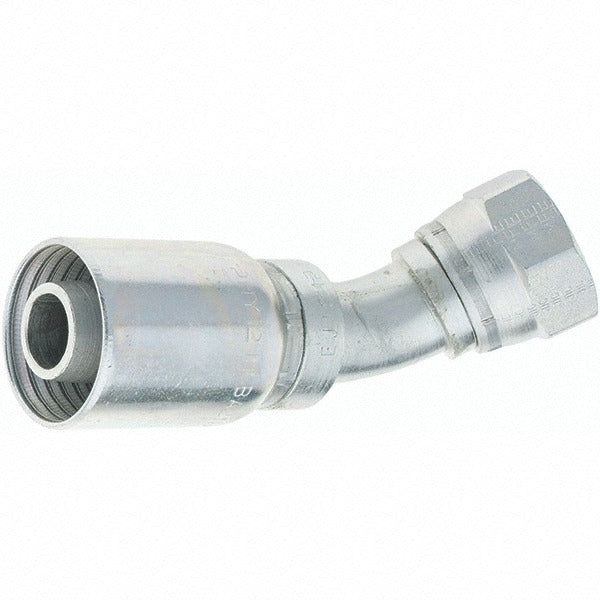

Parker PP-00370 Female Jic Swivel 45 Elbow 3/4 in Steel

Product Description

The PARKER PP-00370 is a female JIC swivel 45-degree elbow hydraulic hose fitting machined from steel. It connects a 3/4-inch hydraulic hose to a 1-1/16-12 JIC female thread at a 45-degree angle, allowing hose routing in tight or angled plumbing configurations where a straight fitting would not work. The swivel design lets the hose end rotate during installation, reducing torsional stress on the hose assembly. This fitting is installed by hydraulic system technicians and fluid power mechanics working on mobile equipment, industrial machinery, and stationary hydraulic power units.

This fitting is suited for hydraulic plumbing applications where a 45-degree offset is needed between the hose and a JIC-threaded port. Typical install scenarios include mobile hydraulics on construction and agricultural equipment, industrial press and lift circuits, and any system using 3/4-inch hose with 1-1/16-12 JIC male port connections. The 45-degree elbow geometry helps route hose away from obstructions and reduces bend-radius strain near the fitting end.

Key Features

• Female JIC swivel end allows rotation during assembly to prevent hose twist
• 45-degree elbow body simplifies hose routing in tight or angled installations
• Steel construction for durability in high-pressure hydraulic service
• 3/4-inch hose size paired with 1-1/16-12 JIC thread for a common hydraulic hose pairing
• Sold in a package quantity of 2

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using 3/4-inch hose and 1-1/16-12 JIC female swivel connections in mobile and industrial hydraulic circuits.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fitting. Inspect the mating JIC male port for damage or contamination before assembly. Use appropriate hydraulic wrenching technique and torque to the system specification for 1-1/16-12 JIC fittings — do not over-tighten, as JIC connections seal on the flare seat, not a gasket.
