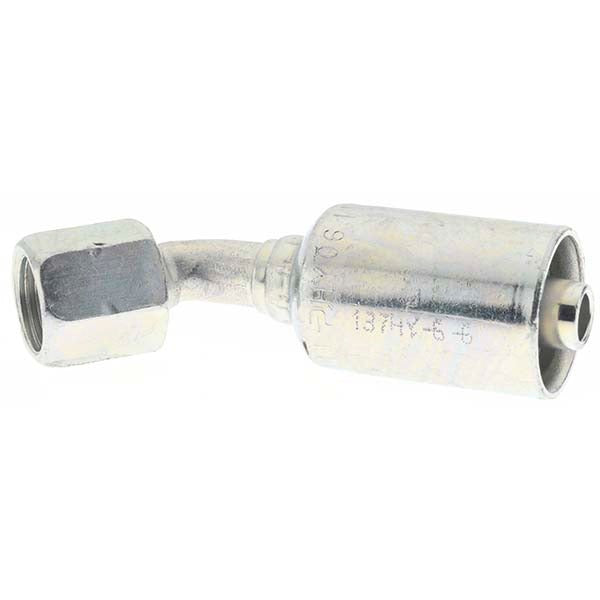

Parker PP-00364 Female Jic Swivel 45 Elbow 3/8 in Steel

Product Description

The PARKER PP-00364 is a female JIC swivel 45-degree elbow hydraulic hose fitting manufactured from steel. It connects a 3/8-inch hydraulic hose to a 9/16-18 female JIC threaded port at a 45-degree angle, allowing directional routing in tight or obstructed plumbing runs. The swivel design permits the fitting body to rotate during installation, reducing torque transfer to the hose and making it easier to achieve a proper seat without twisting the assembly. This fitting is installed by hydraulic system technicians and fluid power mechanics on mobile equipment, industrial machinery, and stationary hydraulic power units.

This fitting is suited for hydraulic plumbing applications where a straight connection is not practical and a 45-degree offset is needed to clear adjacent components or route hose along a chassis or frame. The 9/16-18 JIC thread is a standard SAE 37-degree flare interface widely used in mobile hydraulics, agricultural equipment, construction machinery, and industrial fluid power systems. The 3/8-inch hose size is common in medium-pressure hydraulic circuits on both mobile and stationary equipment.

Key Features

• 45-degree elbow angle enables directional hose routing in space-constrained installations
• Swivel body allows fitting rotation during makeup, reducing hose twist and assembly stress
• 9/16-18 female JIC thread conforms to SAE 37-degree flare standard
• Compatible with 3/8-inch hydraulic hose diameter
• Steel construction for durability in high-pressure hydraulic service

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic systems using 3/8-inch hose and 9/16-18 JIC ported connections in mobile, agricultural, and industrial fluid power applications.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fitting. Inspect the JIC flare seat and mating port for damage or contamination before assembly. Hand-tighten first to confirm thread engagement, then wrench-tighten to achieve a proper metal-to-metal JIC seat without over-torquing the swivel nut.
