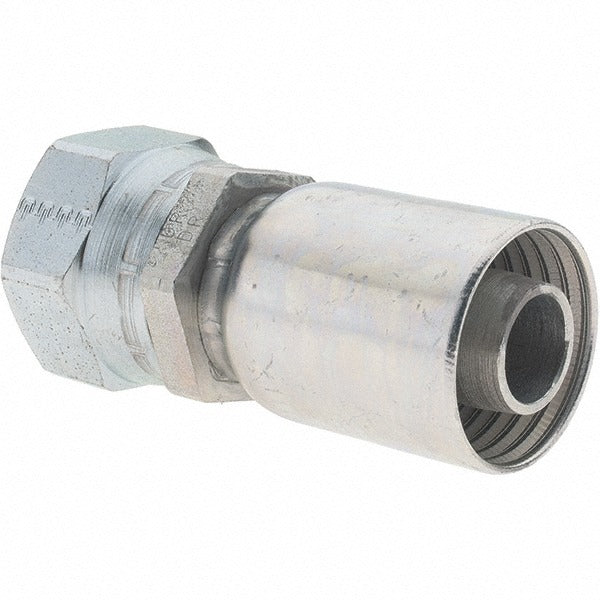

Parker PP-00358 Female Jic 37 Swivel Fitting 3/4 in Steel

Product Description

The PARKER PP-00358 is a straight female JIC 37-degree swivel fitting designed for use in hydraulic hose assemblies. This steel fitting connects to the hose end and provides a swivel joint that allows the mating tube end or port connection to rotate during installation, reducing assembly stress and minimizing hose twist. It is compatible with 0.75-inch (3/4-inch) inside diameter hoses and uses a 1-5/16-12 thread size. The Series HY designation places it within a standard hydraulic fitting line commonly specified by hydraulic system technicians, equipment maintenance professionals, and fluid power shops working on mobile or industrial hydraulic circuits.

This fitting is rated for use with Parker 801, 836, and 611HT hose series. It is intended for hydraulic applications where a straight, female JIC threaded termination is required at the hose end. Typical installation scenarios include mobile equipment hydraulics, industrial machinery, and agricultural equipment where a swivel-style JIC fitting is preferred to allow final tightening without rotating the hose assembly itself. The straight shape keeps plumbing direct where routing geometry allows.

Key Features

• Straight configuration with female JIC 37-degree swivel design for low-stress hose assembly
• Fits 0.75-inch (3/4-inch) ID hose, hose size designation 12
• 1-5/16-12 thread size for positive, leak-resistant connection
• Steel construction for durability in hydraulic pressure applications
• Swivel action allows fitting to rotate during torquing without twisting the hose
• Overall length of 3.3 inches for compact installation clearance

Compatibility

Designed for use with Parker 801, 836, and 611HT hydraulic hose series with a 0.75-inch inside diameter (hose size 12).

Installation Notes

This fitting is installed by licensed hydraulic technicians or fluid power professionals. Depressurize and bleed the hydraulic system completely before removing or installing any hose fitting. Use calibrated torque tooling appropriate for JIC 37-degree swivel fittings and follow the fitting manufacturer torque tables for the specific thread size. Inspect the JIC seating surface and hose cut end for burrs or damage before assembly to prevent leaks under pressure.
