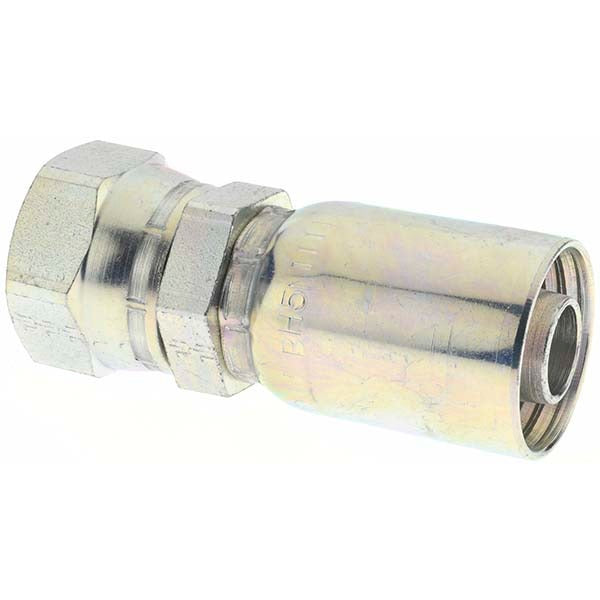

Parker PP-00356 Female Jic 37 Deg Swivel Fitting 10mm

Product Description

The PARKER PP-00356 is a straight female JIC 37-degree swivel fitting designed for use in hydraulic hose assemblies. Constructed from steel, this fitting connects a 10 mm hose end to a 1-1/16-12 inch threaded port using a JIC 37-degree flare seat. The swivel design allows the hose to be positioned without twisting during assembly, reducing installation stress on the hose and adjacent components. It is suited for high-pressure hydraulic circuits found in mobile equipment, industrial machinery, and fluid power systems. Hydraulic technicians and fluid power specialists are the typical installers for this type of fitting.

This fitting is used in hydraulic hose assemblies requiring a straight female JIC 37-degree swivel termination. It accommodates a 5/8-inch hose diameter with a 10 mm hose size designation and threads onto 1-1/16-12 inch male JIC ports. It is commonly installed in mobile hydraulic systems, industrial presses, and construction equipment where reliable leak-free connections are required. This package includes 2 fittings per unit, making it practical for repair kits and service vehicle stock.

Key Features

• Straight female JIC 37-degree swivel configuration for flexible hose routing
• Steel construction for durability in high-pressure hydraulic service
• Fits 10 mm hose size with 5/8-inch hose diameter
• 1-1/16-12 inch thread size for standard JIC port connections
• Swivel body allows hose orientation adjustment without twisting
• Packaged as 2 fittings per unit for convenient service use

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies using a 1-1/16-12 inch female JIC 37-degree swivel straight end termination on 10 mm hose with 5/8-inch outer diameter.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Always depressurize and relieve all residual hydraulic pressure from the system before removing or installing any fitting. Use proper JIC flare seat assembly practices and a calibrated torque wrench to avoid under- or over-tightening the swivel nut. Inspect the JIC 37-degree flare seat on both the fitting and the mating port for damage before assembly.
