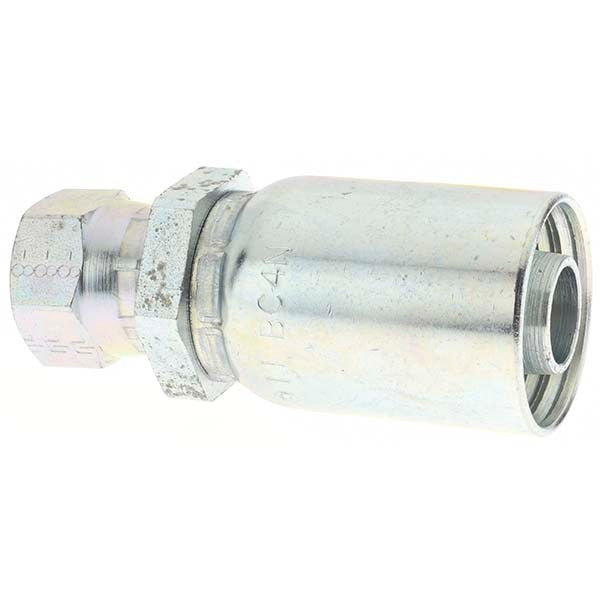

Parker PP-00352 Female Jic 37 Swivel Fitting 5/8 in Hose

Product Description

The PARKER PP-00352 is a straight female JIC 37-degree swivel hose fitting designed for hydraulic fluid conveyance systems. Constructed from steel, this fitting connects a 5/8-inch hydraulic hose to a 3/4-16 inch threaded port using the standard JIC 37-degree flare seating geometry. The swivel design allows the hose end to rotate freely during assembly, reducing torsional stress on the hose and simplifying routing in tight installations. This fitting is installed by hydraulic system technicians and fluid power mechanics working on mobile equipment, industrial machinery, and similar high-pressure plumbing circuits where JIC connections are specified.

This fitting is suited for hydraulic hose assemblies requiring a straight-orientation female JIC termination. Typical applications include fabricating or replacing hose assemblies on mobile hydraulic equipment, agricultural machinery, construction equipment, and industrial hydraulic power units. The 10 mm nominal hose size designation corresponds to a 5/8-inch hose inside diameter, and the 3/4-16 thread mates with standard JIC male ports on cylinders, valves, pumps, and manifolds. Each package contains 2 fittings.

Key Features

• 37-degree JIC flare swivel design provides a reliable, leak-resistant metal-to-metal seat connection
• Straight orientation simplifies inline hose-to-port connections without offset routing
• Swivel body allows free rotation during torquing to prevent hose twist
• Steel construction provides strength and durability in high-pressure hydraulic service
• 3/4-16 thread size mates with standard JIC male ports
• Sold in packages of 2 fittings per pack

Compatibility

Designed as an OEM-style replacement or new-assembly fitting for hydraulic hose systems using 5/8-inch hose and 3/4-16 JIC threaded ports.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and fully bleed down the hydraulic system before removing or installing any fittings. Inspect the JIC flare seat on both the fitting and the mating port for nicks or damage before assembly. Hand-tighten first, then apply the appropriate flats-from-finger-tight torque method per your system specifications and applicable fluid power standards.
