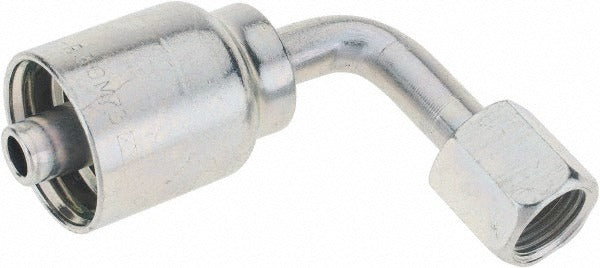

Parker PP-00327 Hydraulic Hose Fitting 90 Degree Elbow

Product Description

The PARKER PP-00327 is a 90-degree elbow hose fitting designed for use in hydraulic fluid power systems. Constructed from steel with a Female JIC threaded connection, this fitting transitions a hose end to a 90-degree angle, reducing stress on the hose assembly and allowing routing in tight spaces. It carries a 9/16-18 thread size and is sized for 3/8-inch (0.375-inch inside diameter) hydraulic hose. Hydraulic technicians and fluid power mechanics install this fitting during hose assembly fabrication or replacement on mobile and industrial hydraulic circuits. Each package contains four fittings.

This fitting is suited for use in mobile equipment, industrial machinery, and hydraulic power unit assemblies where hose routing requires a right-angle change in direction. It conforms to ISO 12151-5 standards and is compliant with California Proposition 65 requirements. The Female JIC swivel-style interface is a standard connection type across a wide range of hydraulic components, making this fitting a commonly stocked item for service and maintenance applications.

Key Features

• 90-degree elbow geometry allows right-angle hose routing in tight or restricted spaces
• Steel construction provides durability under hydraulic system pressure
• Female JIC threaded end conforms to ISO 12151-5 standard
• 9/16-18 thread size fits 3/8-inch (0.375-inch ID) hydraulic hose series
• California Proposition 65 compliant
• Sold in packages of four fittings per unit

Compatibility

Designed for use with Parker hose series 187 TC, ST; 302; 304; 387 TC, ST; 422; 424; 426; 436; 471TC; 471ST; 472TC; 482TC; 482ST; 487 TC, ST; 722 TC, ST; 787 TC, ST; 797 TC, ST; and 881 Hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power system assembly procedures. Depressurize and isolate the hydraulic circuit completely before removing or installing any hose fitting. Use appropriate fitting assembly tools and follow the fitting manufacturer torque and assembly guidelines for JIC threaded connections. Inspect the mating thread and sealing surfaces for damage before assembly.
