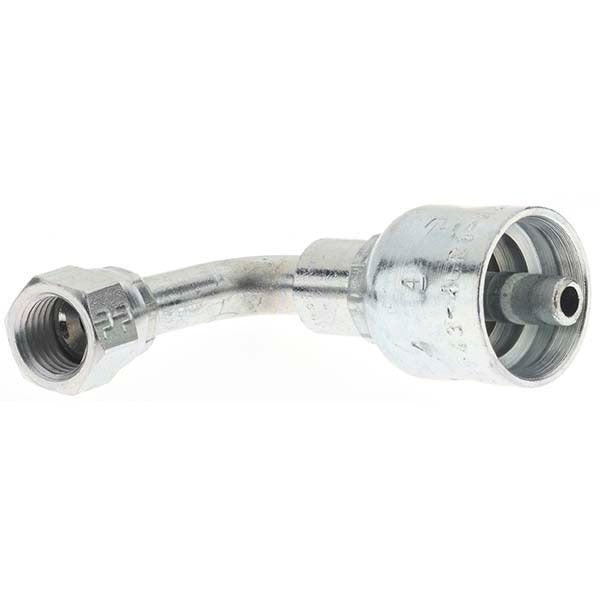

Parker PP-00326 Hydraulic Hose 90 Elbow Steel Female Jic

Product Description

The PARKER PP-00326 is a 90-degree elbow hydraulic hose fitting designed to connect flexible hydraulic hose lines where a right-angle transition is required in a fluid power system. Constructed from steel with a female JIC threaded connection, this fitting accepts a 7/16-20 thread size and is sized for 0.25-inch (1/4-inch, hose size 4) inside diameter hose. Licensed hydraulic system technicians, mobile equipment mechanics, and industrial maintenance professionals install this type of fitting when routing hose through tight spaces or around obstructions in high-pressure hydraulic circuits. The 90-degree geometry reduces stress on the hose at connection points and helps maintain clean, serviceable routing.

This fitting is suited for use in mobile hydraulic systems, industrial machinery, agricultural equipment, and construction equipment applications where hose lines must change direction at a coupling point. It is compatible with a wide range of Parker hose series and is packaged in quantities of 4 per package, making it practical for fleet maintenance and multi-point repairs. The female JIC swivel or fixed-end design seats against a 37-degree flare seat, which is standard across JIC hydraulic fittings.

Key Features

• 90-degree elbow geometry for right-angle hose routing in tight installations
• Steel construction for durability in high-pressure hydraulic service
• Female JIC threaded connection with 7/16-20 thread size
• Sized for 0.25-inch (1/4-inch) inside diameter hose, hose size 4
• Compliant with ISO 12151-5 hydraulic fitting standards
• California Proposition 65 compliant

Compatibility

Compatible with Parker hose series 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with JIC fitting assembly procedures. Depressurize and fully relieve hydraulic system pressure before disconnecting or installing any fittings. Thread engagement and torque should follow the fitting manufacturer and equipment OEM specifications for 7/16-20 JIC connections. Inspect the JIC 37-degree flare seat on both the fitting and the mating component for damage before assembly, and do not overtighten, as this can deform the flare seat and cause leakage.
