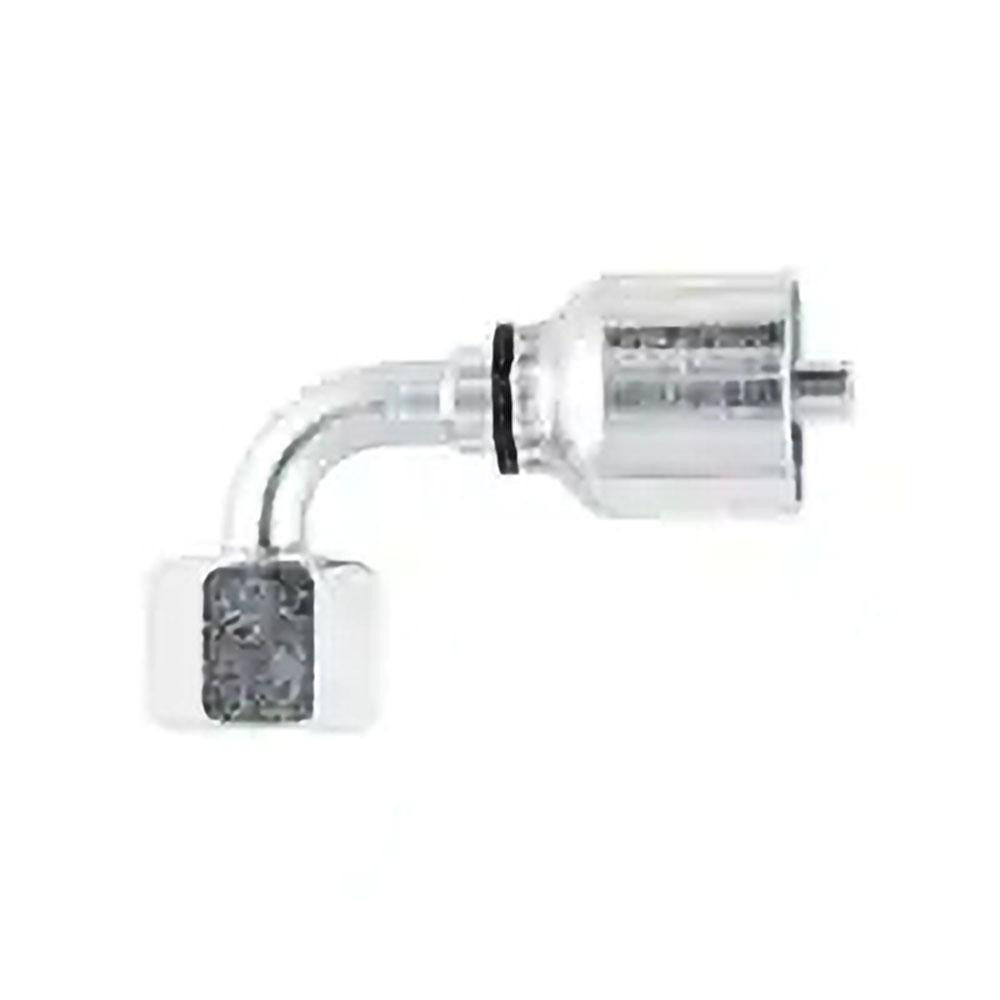

Parker PP-00295 Hydraulic Hose 90 Degree Elbow Fitting

Product Description

The PARKER PP-00295 is a 90-degree elbow hydraulic hose fitting designed for use in high-pressure hydraulic systems. It features a female metric threaded connection with an M22x1.5 thread size and is sized for hoses with a 0.5-inch inside diameter (hose size 8). Constructed from steel, this fitting provides the structural integrity required for demanding hydraulic line routing where a right-angle transition is necessary. It is installed by hydraulic system technicians and fluid power mechanics in mobile, industrial, and equipment-mounted hydraulic circuits where straight inline connections are not practical.

This fitting is suited for applications requiring a 90-degree directional change in a hydraulic hose assembly. It is compatible with a wide range of Parker hose series and is appropriate for both mobile equipment and stationary industrial hydraulic systems. The female metric threaded interface conforms to ISO 12151-2-SWE standards, making it suitable for internationally specified hydraulic assemblies. Each package contains 4 fittings with a minimum order quantity of 1.

Key Features

• 90-degree elbow geometry for right-angle hose routing in confined spaces
• 0.5-inch (1/2 inch) hose inside diameter, hose size 8
• M22x1.5 female metric threaded connection
• Steel construction for durability in high-pressure hydraulic service
• Conforms to ISO 12151-2-SWE standard
• Packaged in quantities of 4 per package

Compatibility

Compatible with Parker 187 TC, ST; 302; 304; 387 TC, ST; 422; 424; 426; 436; 471TC; 471ST; 472TC; 482TC; 482ST; 487 TC, ST; 722 TC, ST; 787 TC, ST; 797 TC, ST; and 881 hose series as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before disconnecting or assembling any fittings. Use appropriate thread sealant or ensure proper sealing surface contact per the system design requirements. Verify thread engagement and torque fittings according to the system manufacturer guidelines and applicable fluid power standards.
