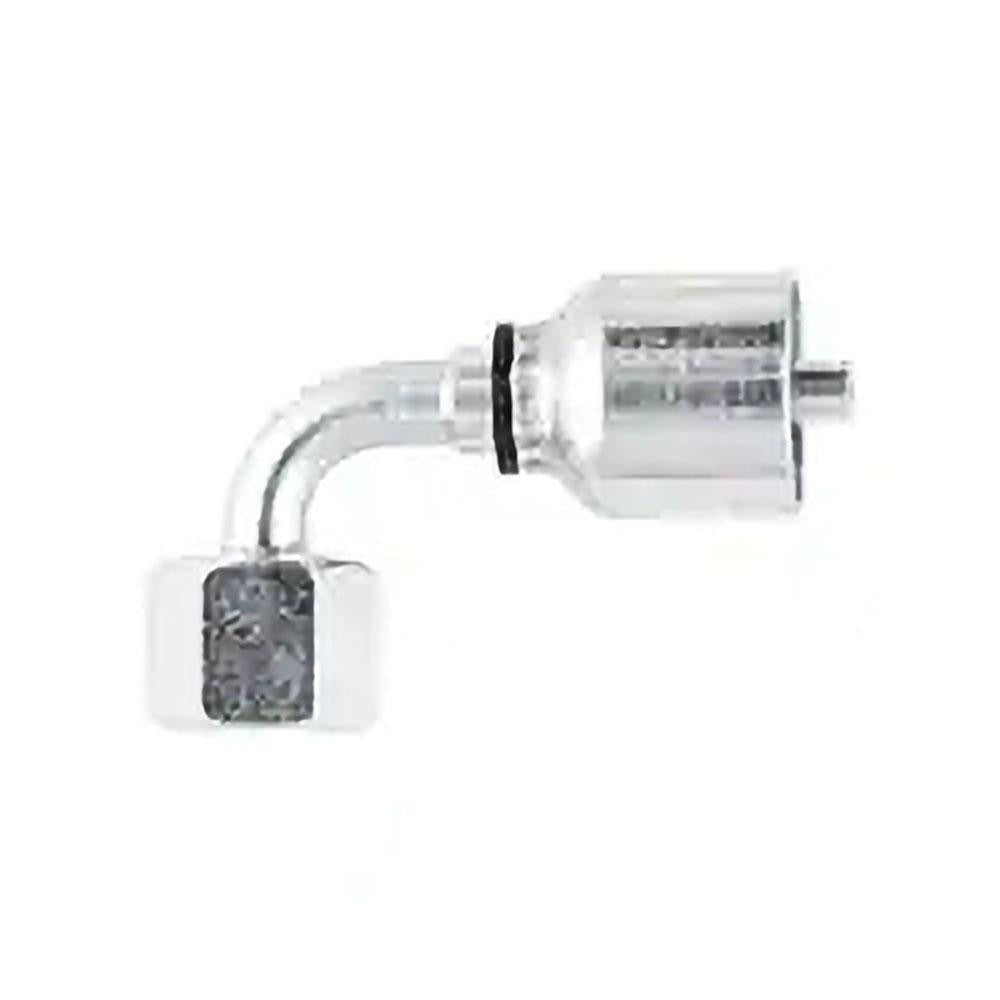

Parker PP-00294 Hydraulic Hose 90 Elbow Fitting Size 6

Product Description

The PARKER PP-00294 is a 90-degree elbow hose fitting designed for hydraulic system connections where a right-angle transition is required between the hose end and a port or component. Constructed from steel with a female metric threaded connection, this fitting accepts an M18x1.5 thread and is sized for 0.375-inch inside diameter (Size 6) hydraulic hose. It is used by hydraulic technicians and industrial maintenance professionals to route hose assemblies cleanly around obstacles, reducing stress on hose ends and improving system layout in tight or confined installations.

This fitting is suited for hydraulic plumbing in mobile equipment, industrial machinery, and fluid power systems where a 90-degree directional change is needed at the hose termination point. It is specifically designed for use with Parker hose series including 187, TC, ST, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 hoses. The female metric interface makes it appropriate for metric-ported components and manifolds common in European and ISO-standard equipment.

Key Features

• 90-degree elbow configuration routes hose at a right angle to reduce bend stress and improve routing clearance
• Steel construction provides durability in high-pressure hydraulic service environments
• Female metric threaded connection with M18x1.5 thread for compatibility with ISO-standard metric ports
• Sized for 0.375-inch (3/8 inch) inside diameter, Size 6 hydraulic hose
• Meets ISO 12151-2-SWE standard for hose fittings
• California PROP 65 compliant

Compatibility

Designed for use with Parker hose series 187, TC, ST, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 hoses in Size 6 (0.375-inch ID).

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power system assembly and applicable safety standards. Depressurize and isolate the hydraulic circuit completely before disassembling any hose or fitting. Verify thread engagement and use appropriate thread sealant or sealing method per the equipment manufacturer's specifications. Inspect the fitting and mating port threads for damage before assembly to prevent leaks under pressure.
