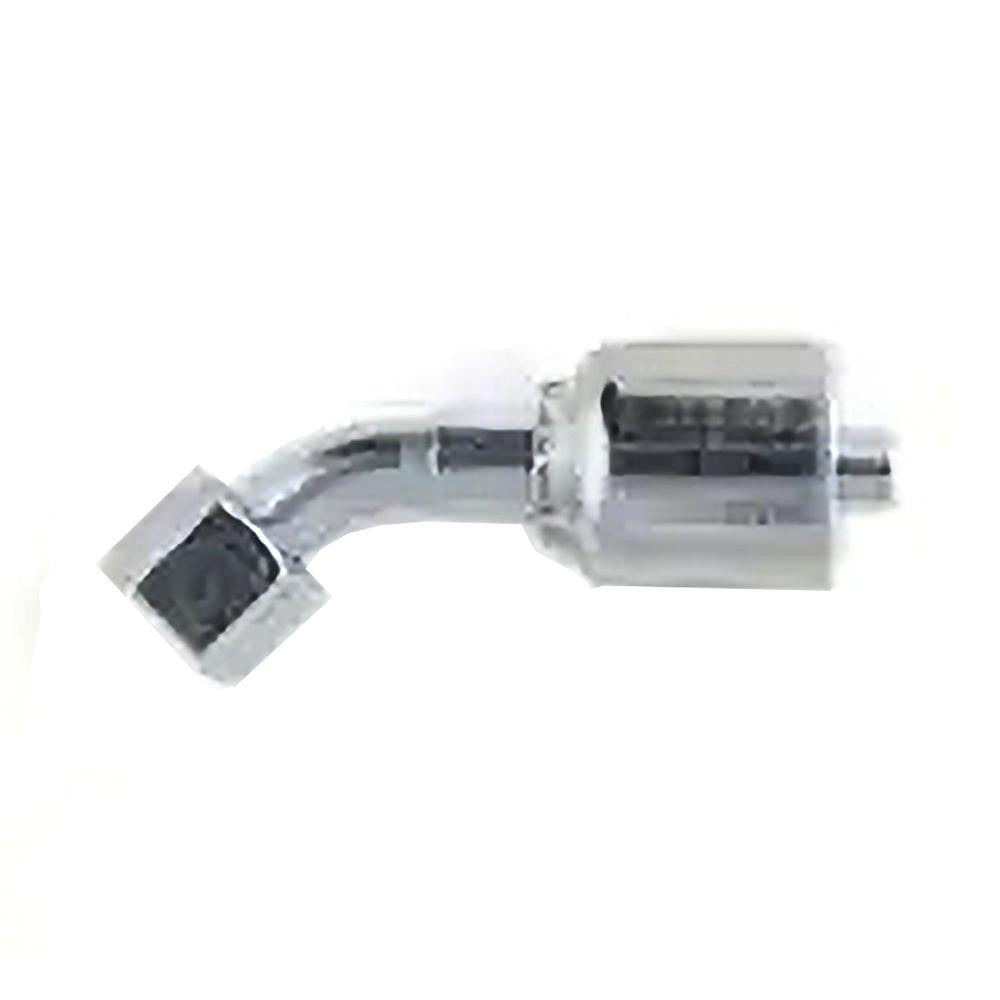

Parker PP-00293 Hydraulic Hose 45 Elbow 0.5 in Id Steel

Product Description

The PARKER PP-00293 is a 45-degree elbow hydraulic hose fitting designed for use in high-pressure hydraulic systems. Manufactured from steel with a female threaded connection, this fitting accepts an M22x1.5 thread and is rated for size 8 hose with a 0.5-inch inside diameter. It is built to ISO 12151-2-SWE45 standards, ensuring dimensional consistency and reliable performance in demanding fluid-power applications. Licensed HVAC techs, hydraulic system technicians, and industrial maintenance professionals working on mobile or stationary hydraulic circuits will find this fitting suitable for standard assembly and repair work.

This fitting is intended for use in hydraulic hose assemblies where a 45-degree elbow transition is required, reducing stress on hose ends and allowing routing in confined or angled installations. It is compatible with a broad range of Parker hose series and is suited for both original equipment assembly and field repair scenarios. The female threaded end accepts a mating male fitting to form a secure, leak-resistant hydraulic connection in size 8 hose lines.

Key Features

• 45-degree elbow geometry reduces hose bend stress and supports angled routing
• Steel construction for durability in high-pressure hydraulic service
• Female threaded connection with M22x1.5 thread size
• Meets ISO 12151-2-SWE45 dimensional and performance standards
• Compatible with Parker Series 43 hose fittings
• California Proposition 65 compliant

Compatibility

Designed for use with Parker hose series 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 Hoses.

Installation Notes

Installation should be performed by a qualified hydraulic systems technician familiar with fluid-power assembly practices. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fitting. Use appropriate thread sealant or follow the system manufacturer's sealing recommendations for M22x1.5 metric threads. Inspect the mating hose end and threads for damage before assembly to ensure a leak-free connection.
