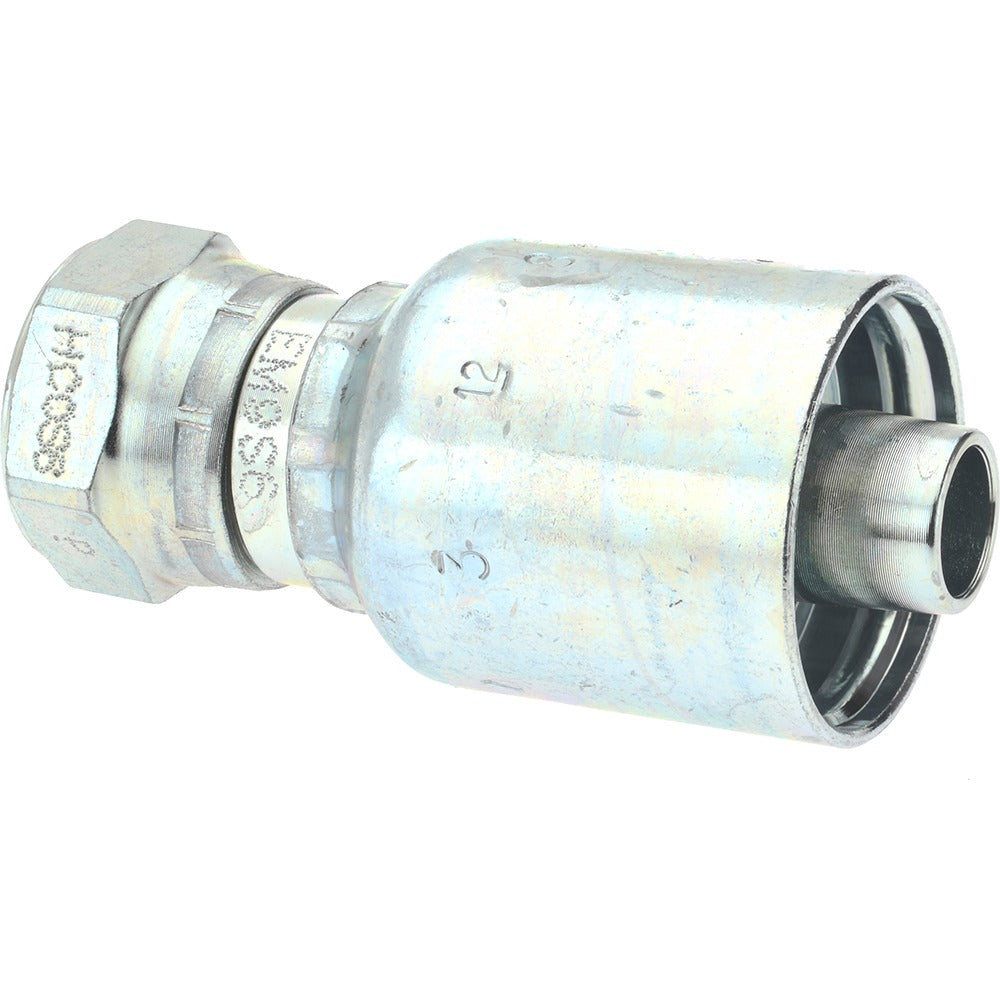

Parker PP-00272 Hydraulic Hose Swivel Fitting 0.5 in Steel

Product Description

The PARKER PP-00272 is a straight swivel fitting designed for hydraulic hose assemblies. It connects a 0.5-inch inside diameter hose to a threaded port using an M20x1.5 metric thread. The fitting measures 2.18 inches in overall length and is constructed from steel for durability in high-pressure hydraulic systems. The swivel design allows the hose to rotate at the connection point without twisting the hose body, reducing stress at the fitting end. Licensed hydraulic technicians and fluid power specialists install this type of fitting in mobile equipment, industrial machinery, and similar hydraulic circuits where hose routing flexibility is required.

This fitting is rated for use with Parker hose series including 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 hoses in both TC and ST configurations. It is suited for metric-threaded hydraulic systems in both mobile and stationary industrial applications. The straight body profile simplifies installation where hose and port alignment is direct and no angular offset is needed.

Key Features

• Swivel design allows hose rotation at connection without twisting hose body
• M20x1.5 metric thread size for compatibility with metric-ported hydraulic components
• Straight shape for direct hose-to-port alignment
• Steel construction provides strength in demanding hydraulic service environments
• 0.5-inch hose inside diameter fits Parker 8mm hose size designation
• Overall length of 2.18 inches suits compact plumbing layouts

Compatibility

Compatible with Parker 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 hydraulic hose series in TC and ST configurations, as specified by Parker for the Series 43 fitting line.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic system specialist. Depressurize and bleed the hydraulic system completely before removing or installing any fittings. Use appropriate hydraulic fitting tools and follow the fitting manufacturer's assembly instructions for thread engagement and swivel orientation. This product is subject to California Proposition 65 requirements — handle in accordance with applicable safety guidelines for metal components in hydraulic service.
