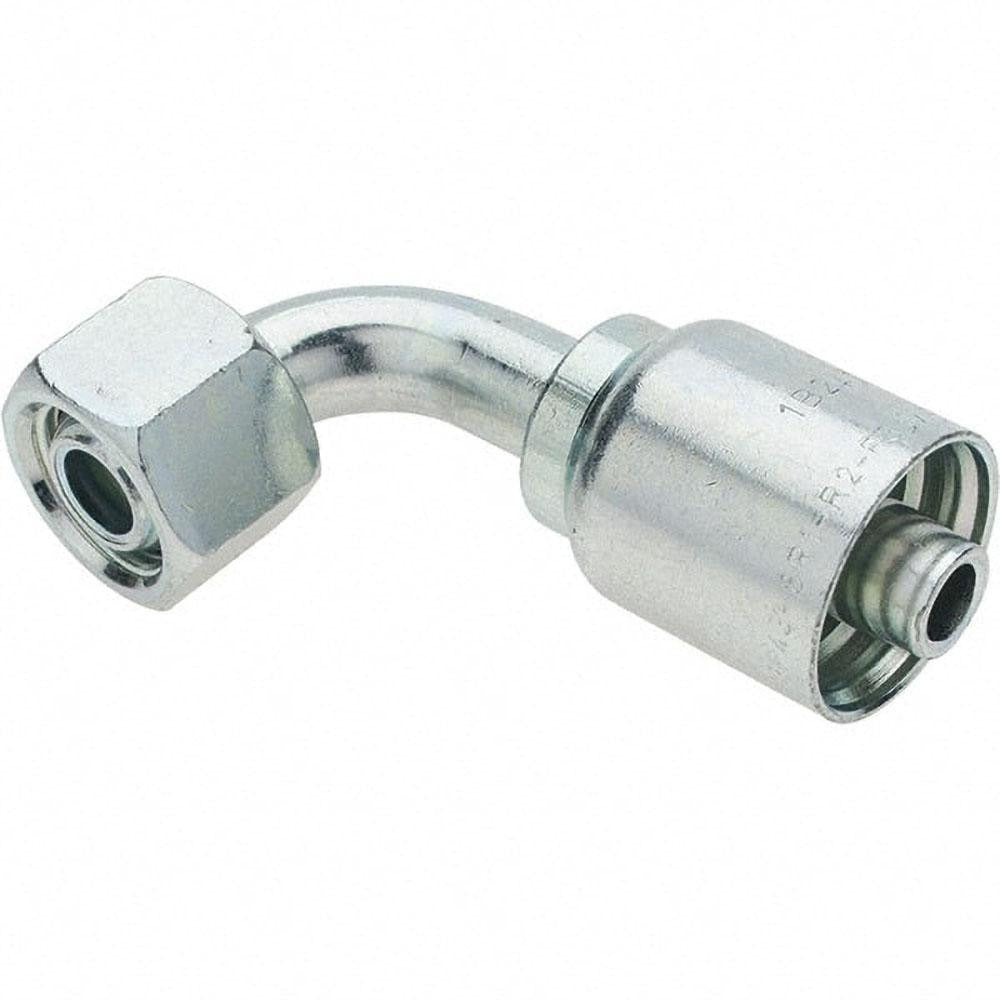

Parker PP-00248 Hydraulic Hose 90 Elbow 0.75 in Steel Bspp

Product Description

The PARKER PP-00248 is a 90-degree elbow hose fitting designed for hydraulic systems requiring a right-angle fluid-path transition. Constructed from steel with a BSPP threaded connection, this fitting accepts a 0.75-inch (12 mm) hose inside diameter. It conforms to ISO 12151-6 dimensional and performance standards. Licensed hydraulic technicians, fluid-power mechanics, and industrial maintenance professionals install this type of fitting when routing hydraulic lines around obstructions or transitioning from a straight run to a port entry at 90 degrees. The BSPP thread form requires a compatible female BSPP port or adapter at the mating connection point.

This fitting is suited for mobile hydraulic equipment, industrial machinery, and fluid-power plumbing where a 3/4-inch hose-end must connect at a right angle to a component port. It is intended for use in systems where ISO 12151-6 compliant end connections are specified. Installations subject to California regulations should note that this product is listed under California Proposition 65.

Key Features

• 90-degree elbow geometry routes hose around tight clearances without bending the hose body
• Steel construction provides durability in high-pressure hydraulic service
• BSPP (parallel) thread form for leak-resistant port connections
• 0.75-inch (12 mm) hose inside diameter matches a wide range of Parker hose series
• Conforms to ISO 12151-6 for dimensional interchangeability
• Listed under California Proposition 65 for applicable regulatory compliance

Compatibility

Designed for use with Parker hose series: 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 Hoses.

Installation Notes

Installation should be performed by a qualified fluid-power technician or hydraulic systems professional. Depressurize and isolate the hydraulic circuit fully before removing or installing any hose end fittings. BSPP threads are parallel and rely on a bonded seal or O-ring face seal for leak-free assembly — do not use thread sealant tape in place of the correct sealing method for the port type. Inspect the mating port threads for damage before assembly and verify hose series and size compatibility before crimping.
