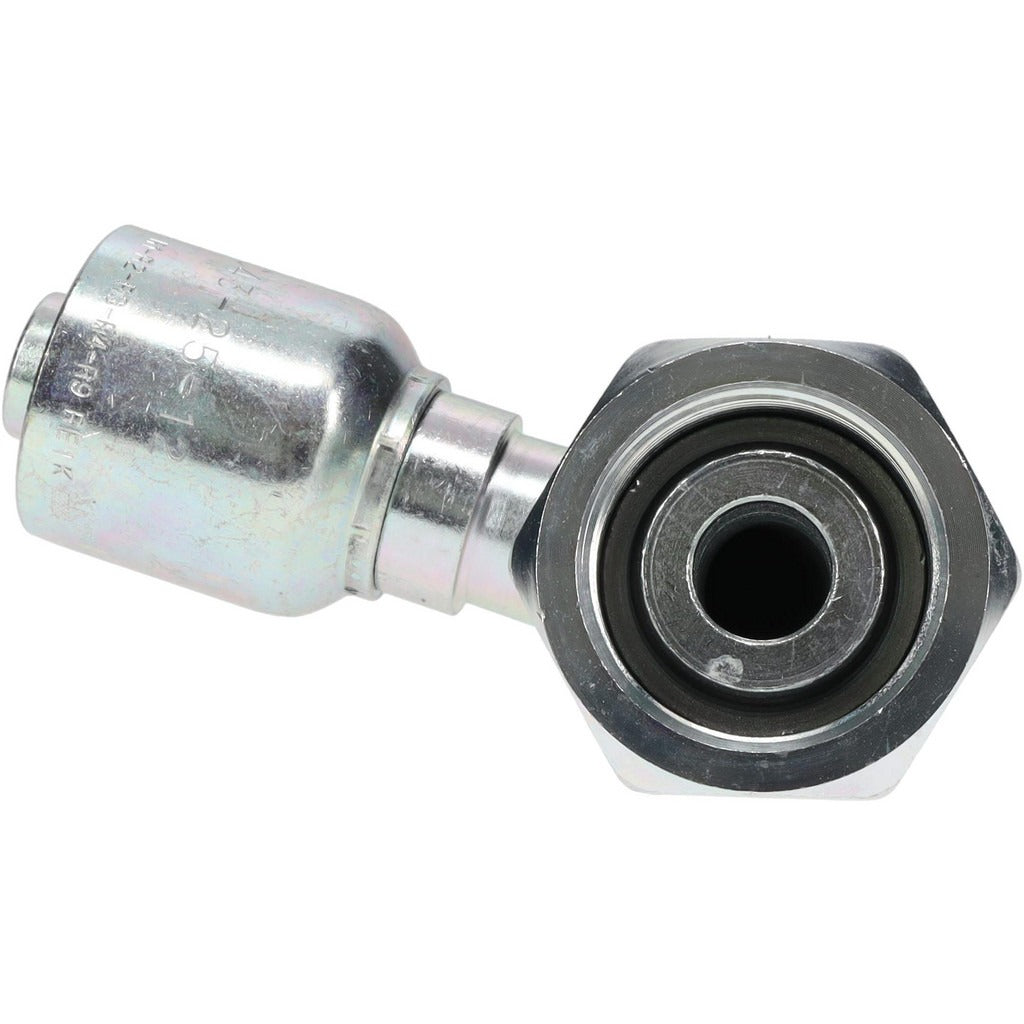

Parker PP-00238 Hydraulic Hose 90 Elbow M36x2 Steel

Product Description

The PARKER PP-00238 is a 90-degree elbow hydraulic hose fitting designed for use with a wide range of Parker hydraulic hose assemblies. Constructed from steel with a female metric threaded connection, this fitting accepts a 0.75 inch (3/4 inch) inside diameter hose and uses an M36x2 thread specification. It is built to ISO 12151-2-SWE standards and is rated under California Proposition 65 compliance requirements. This fitting is installed by hydraulic system technicians and industrial maintenance professionals working on mobile equipment, fluid power systems, and high-pressure hydraulic lines where a 90-degree directional change in hose routing is required.

The PP-00238 is suited for use in hydraulic systems that require a compact, angled hose termination to route lines around obstructions or optimize hose lay. It is compatible with Parker Series 43 hose end fittings and is used in both industrial and mobile hydraulic applications. The female metric threaded interface allows direct connection to standard metric hydraulic ports and components. Package quantity is two units per package.

Key Features

• 90-degree elbow configuration for directional hose routing in tight installations
• Steel construction for durability in high-pressure hydraulic environments
• Female metric threaded connection with M36x2 thread size
• Meets ISO 12151-2-SWE standard for hose fittings
• California Proposition 65 compliant
• Parker Series 43 fitting series

Compatibility

Compatible with Parker 187 TC, ST; 302; 304; 387 TC, ST; 422; 424; 426; 436; 471TC; 471ST; 472TC; 482TC; 482ST; 487 TC, ST; 722 TC, ST; 787 TC, ST; 797 TC, ST; and 881 hoses as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power systems and proper fitting torque procedures. Depressurize and fully discharge the hydraulic system before removing or installing any hose fittings. Inspect thread condition on both the fitting and the mating port before assembly to avoid cross-threading or leaks. Follow applicable fluid power industry standards and equipment manufacturer specifications for assembly and pressure testing.
