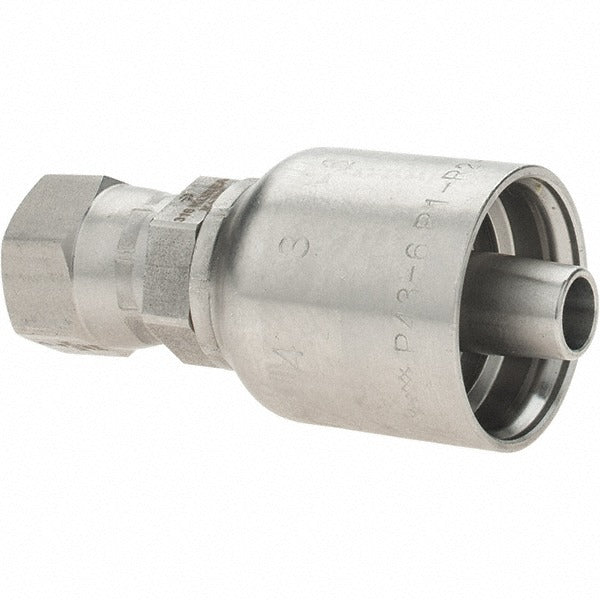

Parker PP-00219 Female Jic 37 Deg Swivel Fitting 3/8 in

Product Description

The PARKER PP-00219 is a straight female JIC 37-degree swivel fitting designed for use in hydraulic hose assemblies. Constructed from stainless steel, this fitting connects to hose with a 0.375 inch (3/8 inch) inside diameter and uses a 9/16-18 threaded connection. The swivel design allows the fitting to rotate during installation, reducing hose twist and making routing easier in tight spaces. With an overall length of 58.00 mm and compliance with ISO 12151-5-SWS, this fitting meets recognized international standards for hydraulic hose connections. It is installed by hydraulic system technicians and fluid power specialists in industrial and mobile hydraulic applications.

This fitting is suited for hydraulic hose assemblies requiring a female JIC 37-degree flare interface on size 6 hose. The straight configuration is appropriate for in-line connections where hose and port alignment is direct. Typical installations include industrial machinery, mobile equipment, and fluid power circuits where stainless steel corrosion resistance and reliable sealing at the 37-degree flare seat are required. The 9/16-18 thread size is standard for JIC fittings on 3/8 inch hose. Parker Series 43 fittings are intended for professional hydraulic assembly work.

Key Features

• Straight female JIC 37-degree swivel design reduces hose twist during assembly
• Stainless steel construction provides corrosion resistance in demanding environments
• 0.375 inch (3/8 inch) hose inside diameter, size 6 hose compatibility
• 9/16-18 threaded connection conforms to JIC standard geometry
• Meets ISO 12151-5-SWS for hydraulic hose fittings
• Parker Series 43 fitting line

Compatibility

Designed as an OEM-style hydraulic hose swivel fitting for size 6 hose with 0.375 inch inside diameter, using a 9/16-18 female JIC 37-degree threaded interface. Consult Parker fitting compatibility charts to confirm fitment with specific hose assemblies and port configurations.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fittings. Inspect sealing surfaces for damage before assembly, and tighten to the fitting manufacturer's recommended torque range for the thread size — do not over-torque stainless steel fittings. Follow applicable industry standards and equipment OEM guidelines for hydraulic hose assembly.
