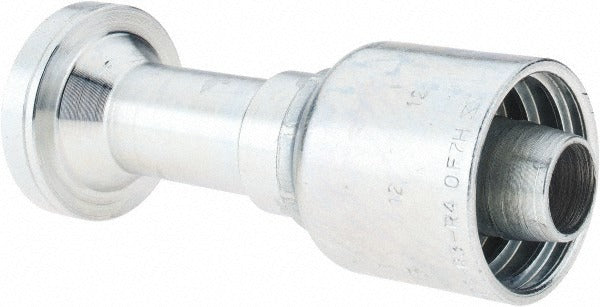

Parker PP-00119 Sae Code 62 Flange Fitting 3/4 in

Product Description

The PARKER PP-00119 is a straight SAE Code 62 flange fitting designed for use with 3/4-inch hydraulic hose assemblies. Manufactured from steel, this fitting provides a high-pressure-rated connection point that meets SAE Code 62 four-bolt flange standards. It is used to terminate hydraulic hose runs at pumps, motors, cylinders, and manifolds where a straight, leak-resistant flange connection is required. Installation is performed by licensed hydraulic technicians and fluid power mechanics working on industrial and mobile hydraulic systems.

This fitting is suited for straight-run hydraulic hose connections in applications where SAE Code 62 four-bolt flange ports are specified. Code 62 flanges are commonly found in high-pressure hydraulic circuits operating on construction equipment, agricultural machinery, industrial presses, and mobile hydraulic systems. The 3/4-inch hose size makes this fitting appropriate for medium-bore hydraulic lines carrying high-flow, high-pressure fluid. Each package contains two fittings.

Key Features

• Straight configuration for direct inline hose-to-port connections
• SAE Code 62 four-bolt flange interface for high-pressure hydraulic service
• 3/4-inch hose size compatibility for medium-bore hydraulic lines
• Steel construction for durability in demanding hydraulic environments
• Sold in packages of two fittings per order

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies using 3/4-inch hose with SAE Code 62 four-bolt flange ports.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and bleed the hydraulic system completely before removing or installing any fittings. Follow SAE J518 torque specifications for Code 62 four-bolt flange connections and inspect all sealing surfaces for damage prior to assembly. Do not overtighten bolts or reuse damaged O-rings.
