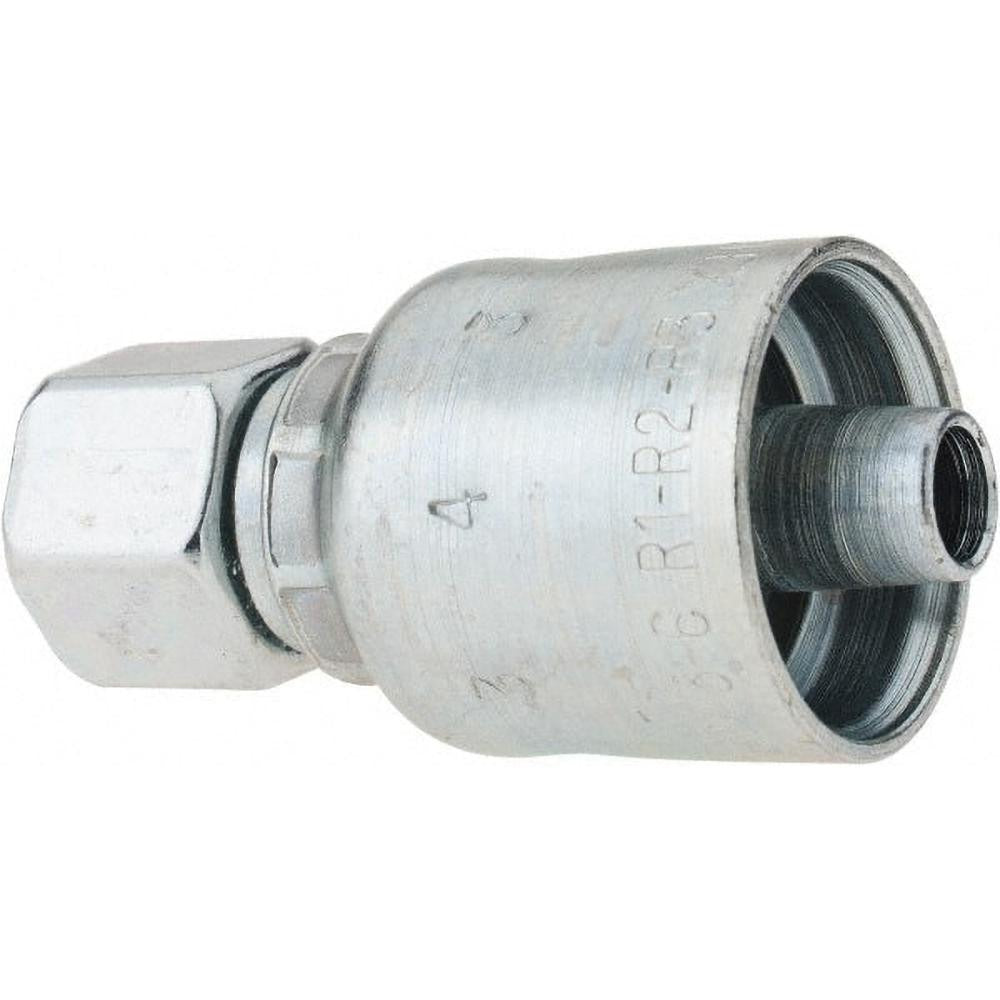

Parker PP-00109 Hydraulic Hose Swivel Fitting 0.25in Steel

Product Description

The PARKER PP-00109 is a straight swivel fitting designed for hydraulic hose assemblies. It features a female threaded connection with an M14x1.5 thread size and accepts hoses with a 0.25 inch inside diameter (hose size 4). Constructed from steel, this fitting provides the durability required in high-demand hydraulic circuits. Its swivel design allows the hose to rotate freely during routing and installation, reducing torsional stress on the assembly. Licensed hydraulic technicians and fluid-power specialists typically install this fitting in mobile equipment, industrial machinery, and stationary hydraulic systems. Overall length is 1.77 inches.

This fitting is suited for use in hydraulic systems where a straight, female-threaded swivel connection is required at the hose end. It is commonly installed at pump ports, cylinder ports, and manifold connections where controlled hose movement is needed to prevent hose fatigue. It is packaged in a quantity of four units per pack, making it practical for service shops and OEM assembly operations that require multiple connections per system build.

Key Features

• Swivel design reduces hose torsion and stress during routing and operation
• Female threaded connection with M14x1.5 thread for secure port engagement
• 0.25 inch inside diameter compatible with size 4 hydraulic hose
• Straight shape simplifies inline hose-to-port connections
• Steel construction for durability in hydraulic service environments
• Packaged in quantities of four units per pack

Compatibility

Compatible with Parker 187 TC, ST; 302; 304; 387 TC, ST; 422; 424; 426; 436; 471TC; 471ST; 472TC; 482TC; 482ST; 487 TC, ST; 722 TC, ST; 787 TC, ST; 797 TC, ST; and 881 series hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid-power specialist. Depressurize and isolate the hydraulic circuit completely before disconnecting or assembling any fittings. Use appropriate thread sealant or verify thread compatibility before tightening. Inspect the fitting and hose end for damage before assembly to ensure a leak-free connection.
