Parker PP-00106 Hydraulic Hose 90 Elbow 0.25in Steel M16x1.5

Product Description

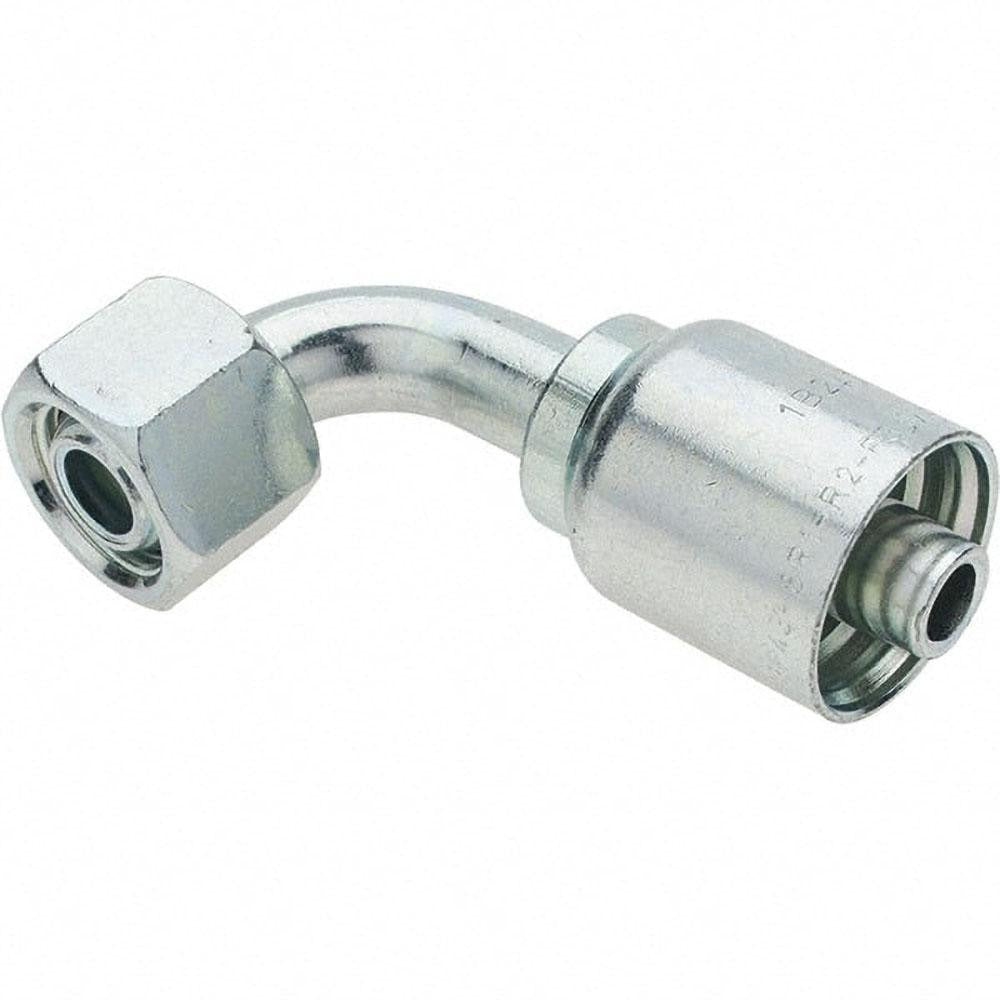

The PARKER PP-00106 is a 90-degree elbow hose fitting designed for hydraulic hose assemblies requiring a right-angle directional change at the connection point. Constructed from steel with a female metric threaded interface, this fitting accepts M16x1.5 thread and is sized for hoses with a 0.25 inch (1/4 inch) inside diameter. It is a Series 43 fitting and meets ISO 12151-2-SWE dimensional standards. The PP-00106 is sold in a package quantity of four units. Hydraulic technicians and fluid power specialists install this type of fitting during hose assembly fabrication or when routing hose runs in tight-clearance equipment bays where a straight fitting would not clear surrounding components.

This fitting is intended for use in hydraulic systems where hose routing requires a 90-degree bend at the termination point. It is compatible with Parker hose series 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses. Typical applications include mobile hydraulic equipment, industrial machinery, and agricultural equipment where controlled hose routing and compact connection geometry are required.

Key Features

• 90-degree elbow geometry for right-angle hose routing in space-constrained installations
• Steel construction for durability in hydraulic service environments
• Female metric threaded connection, M16x1.5 thread size
• Sized for 0.25 inch inside diameter hose (Hose Size 4)
• Meets ISO 12151-2-SWE standard for swaged hose end fittings
• California Prop 65 compliant; sold in a package of 4 units

Compatibility

Designed for use with Parker hose series 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses with a 0.25 inch inside diameter.

Installation Notes

Installation of hydraulic hose fittings should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before disconnecting or assembling any hose ends or fittings. Use the appropriate assembly tooling for the hose series to ensure a proper swaged or threaded connection; do not overtighten or use improper tooling, as this can compromise fitting integrity. Follow the equipment manufacturer and Parker assembly specifications for the specific hose series being used.
