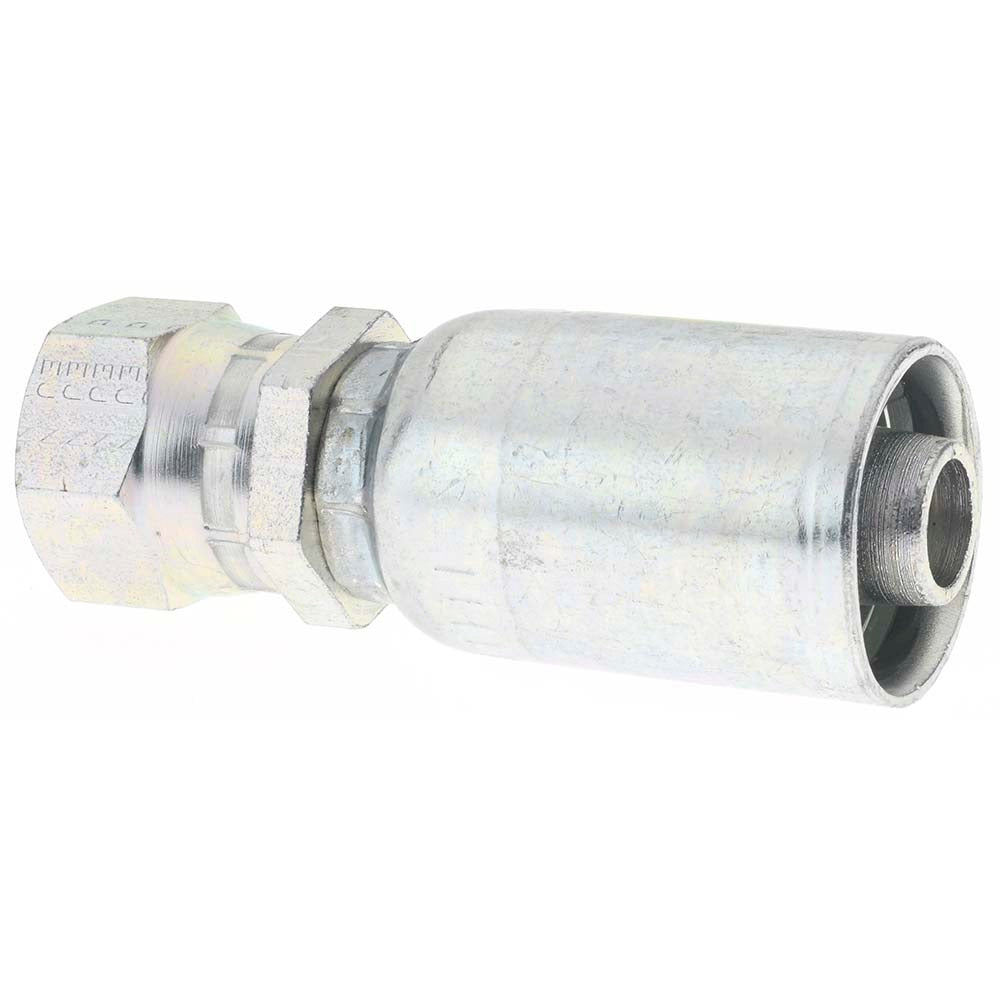

Parker PP-00098 Female Jic 37 Deg Swivel Fitting 1/2 in

Product Description

The PARKER PP-00098 is a straight female JIC 37-degree swivel fitting designed for hydraulic hose assemblies. It connects a 1/2-inch hose to a 3/4-16 UNF threaded port using a standard JIC 37-degree flare seat. Constructed from steel, this fitting provides the mechanical strength needed in hydraulic systems operating under pressure. The swivel design allows the hose to be positioned without twisting during installation. This type of fitting is typically installed by hydraulic technicians, mobile equipment mechanics, and industrial maintenance personnel working on fluid power systems.

This fitting is suited for use in mobile hydraulic circuits, industrial fluid power assemblies, and equipment requiring a straight female JIC connection at the hose end. The 1/2-inch hose size and 3/4-16 thread make it appropriate for mid-range hydraulic lines found in agricultural equipment, construction machinery, and general industrial applications. It is sold in a package quantity of four, making it practical for bench stock or multi-point repair jobs.

Key Features

• 37-degree JIC flare seat provides a reliable metal-to-metal seal
• Swivel design allows hose orientation adjustment without torquing the hose body
• Steel construction for durability in high-pressure hydraulic environments
• Straight configuration suits direct port connections without angular offset
• 3/4-16 UNF thread is a widely used JIC standard size
• Package quantity of four supports multi-point repairs or assembly line use

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using 1/2-inch hose with a 3/4-16 UNF female JIC 37-degree swivel end connection.

Installation Notes

Hydraulic fittings of this type should be installed by qualified technicians familiar with fluid power systems. Always depressurize and bleed down the hydraulic circuit before disconnecting or replacing any fitting. Inspect the JIC flare seat and mating port for nicks or contamination before assembly, as damage to either seating surface will cause leakage. Do not use thread sealant on JIC flare fittings, as the seal is made at the 37-degree flare face, not the threads.
