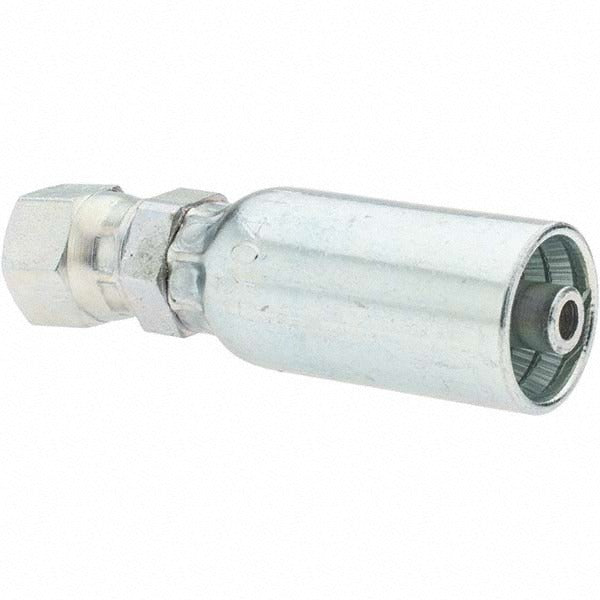

Parker PP-00096 Female Jic 37 Deg Swivel Fitting 1/4 in

Product Description

The PARKER PP-00096 is a straight female JIC 37-degree swivel fitting designed for use in hydraulic hose assemblies. Manufactured from steel, this threaded fitting accepts a 1/4-inch (0.25 inch) inside diameter hose and features a 7/16-20 thread size. The swivel design allows the fitting to rotate during installation, reducing hose twist and making it easier to route lines in tight spaces. With an overall length of 2.6 inches, this fitting is a compact, durable connection point suited for medium-pressure hydraulic circuits. Licensed HVAC and fluid-power technicians, hydraulic system assemblers, and industrial maintenance professionals are the typical installers.

This fitting is intended for hydraulic hose assembly applications where a straight female JIC 37-degree swivel termination is required. It is compatible with Parker 801, 836, and 611HT hoses in the 1/4-inch (Hose Size 4) range. The HY series fitting is commonly used in mobile equipment hydraulics, industrial machinery, and fluid-power systems that specify JIC 37-degree flare connections. The swivel feature is particularly useful in assemblies where fixed-end fittings would introduce torsional stress into the hose.

Key Features

• Straight female JIC 37-degree swivel design reduces hose twist during installation and routing
• Steel construction for durability in hydraulic service environments
• 7/16-20 thread size for precise, leak-resistant JIC flare connections
• 1/4-inch (0.25 inch) hose inside diameter, Hose Size 4 designation
• Overall length of 2.6 inches for compact installation in confined spaces
• Sold in a package quantity of 4 units per order

Compatibility

Designed for use with Parker 801, 836, and 611HT hydraulic hoses in the 1/4-inch inside diameter (Hose Size 4) configuration.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic familiar with JIC flare fittings and fluid-power system assembly. Always depressurize and bleed the hydraulic circuit completely before disconnecting or installing any fittings. Hand-tighten the fitting first to confirm thread engagement, then tighten to the fitting manufacturer's standard practice for JIC connections — do not overtighten, as this can damage the 37-degree flare seat. Inspect the mating flare seat and hose end for nicks or debris before assembly.
