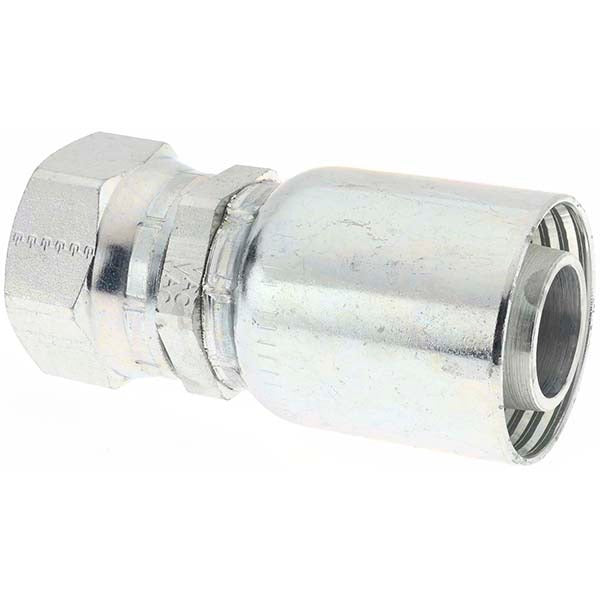

Parker PP-00095 Female Jic 37 Swivel Fitting 1 in Id

Product Description

The PARKER PP-00095 is a straight female JIC 37-degree swivel fitting designed for use in hydraulic hose assemblies. Constructed from steel, this fitting connects hydraulic hoses to system components using a threaded interface with a 1-5/16-12 thread size. The swivel design allows the fitting to rotate during installation, reducing hose twist and making assembly easier in tight or confined plumbing runs. It accommodates a 1-inch inside diameter hose and has an overall length of 3.45 inches. This fitting is installed by hydraulic system technicians and maintenance professionals working on mobile or industrial hydraulic circuits.

This fitting is intended for use with Parker 801, 836, and 611HT hydraulic hoses in the HY series. It is suited for straight-run hose terminations where a female JIC swivel connection is required at the port or component end. Typical applications include industrial machinery, mobile equipment hydraulic lines, and fluid power systems requiring a secure, leak-resistant threaded connection at working pressures common to these hose families.

Key Features

• 37-degree JIC flare seat provides a reliable metal-to-metal seal at the connection point
• Swivel design reduces hose twist during installation and routing
• Steel construction for durability in hydraulic service environments
• 1-5/16-12 thread size for compatibility with standard JIC hydraulic ports
• Straight shape simplifies inline hose-to-port connections
• Compatible with Parker 801, 836, and 611HT hose series

Compatibility

Designed for use with Parker 801, 836, and 611HT hydraulic hoses in the HY series. Fits 1-inch inside diameter hose with a 1-5/16-12 threaded connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power system assembly. Depressurize and lock out the hydraulic system completely before removing or installing any fittings. Hand-tighten the fitting before applying final torque with the appropriate wrench to avoid cross-threading the JIC seat. Follow applicable industry standards and equipment manufacturer guidelines for hydraulic fitting assembly and inspection.
