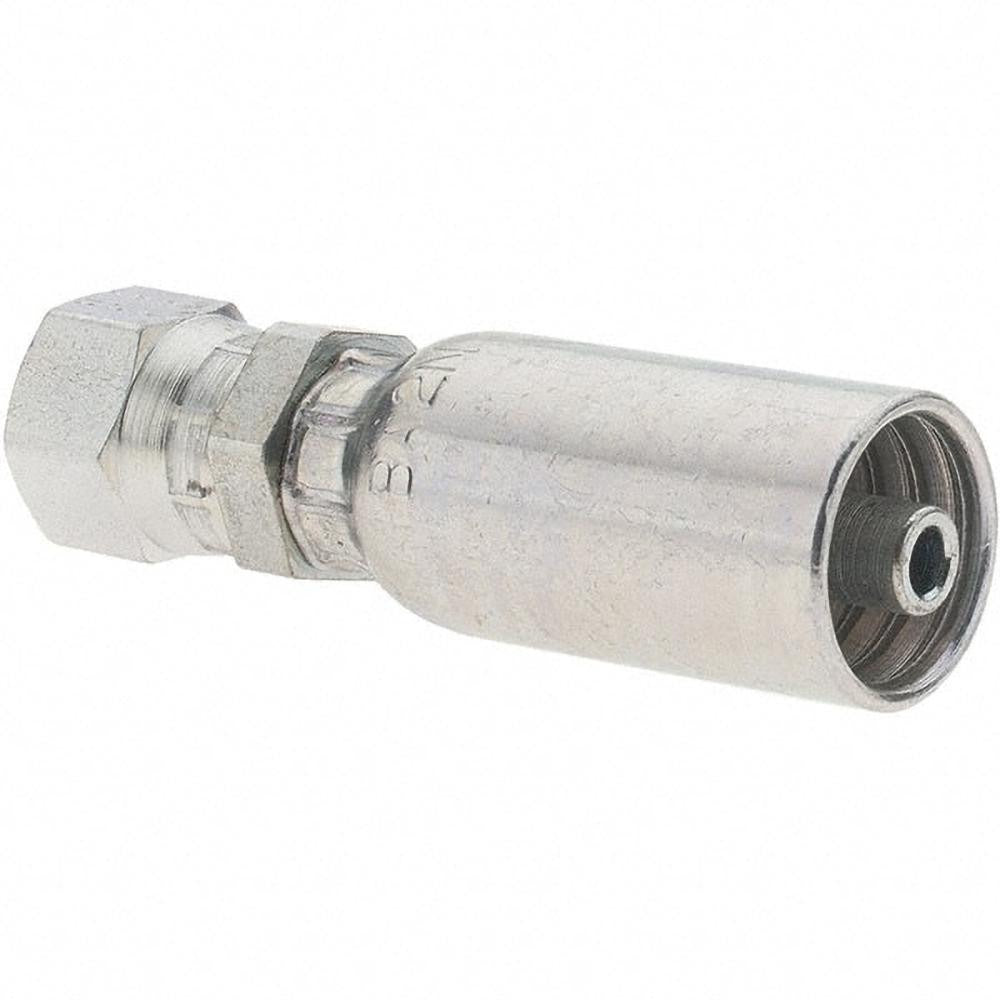

Parker PP-00094 Female Jic 37 Deg Swivel Fitting 0.75 in

Product Description

The PARKER PP-00094 is a straight female JIC 37-degree swivel fitting designed for use with hydraulic hose assemblies. Manufactured from steel, this threaded fitting connects hose to hydraulic circuit components using a 1-1/16-12 thread and accommodates a 0.75 inch (12 mm) inside diameter hose. The swivel design allows the fitting to rotate during installation, reducing hose twist and stress at the connection point. Overall length is 3.22 inches. This fitting is installed by hydraulic system technicians in industrial, mobile, and fluid-power applications wherever a reliable, leak-free JIC connection is required.

The PP-00094 is intended for use with Parker 801, 836, and 611HT hydraulic hose series. It is suited for straight-run hose terminations in both new assemblies and field repairs. The 37-degree JIC flare seat provides a metal-to-metal seal that is standard across most hydraulic system designs. Typical installations include mobile equipment, industrial machinery, and hydraulic power units where hose assemblies terminate at pumps, valves, cylinders, or manifold ports.

Key Features

• Straight female JIC 37-degree swivel design reduces hose twist during assembly
• Steel construction for durability in hydraulic system environments
• Thread size 1-1/16-12 for standard JIC hydraulic circuit compatibility
• Accommodates 0.75 inch (12 mm) ID hose — fits Parker Series HY hose
• Overall length of 3.22 inches suits typical hose end termination clearances
• Compatible with Parker 801, 836, and 611HT hose series per manufacturer specification

Compatibility

Designed for use with Parker 801, 836, and 611HT hydraulic hose series, per manufacturer data. Fits 0.75 inch (12 mm) inside diameter hose with a 1-1/16-12 thread connection.

Installation Notes

Hydraulic fittings should be installed by qualified hydraulic system technicians. De-pressurize the hydraulic system fully and relieve all stored energy before removing or installing any fitting. The swivel feature allows rotation for alignment — do not over-tighten, as metal-to-metal JIC seats can be damaged by excessive torque. Inspect the JIC flare seat on the mating component for nicks or damage before completing the assembly.
