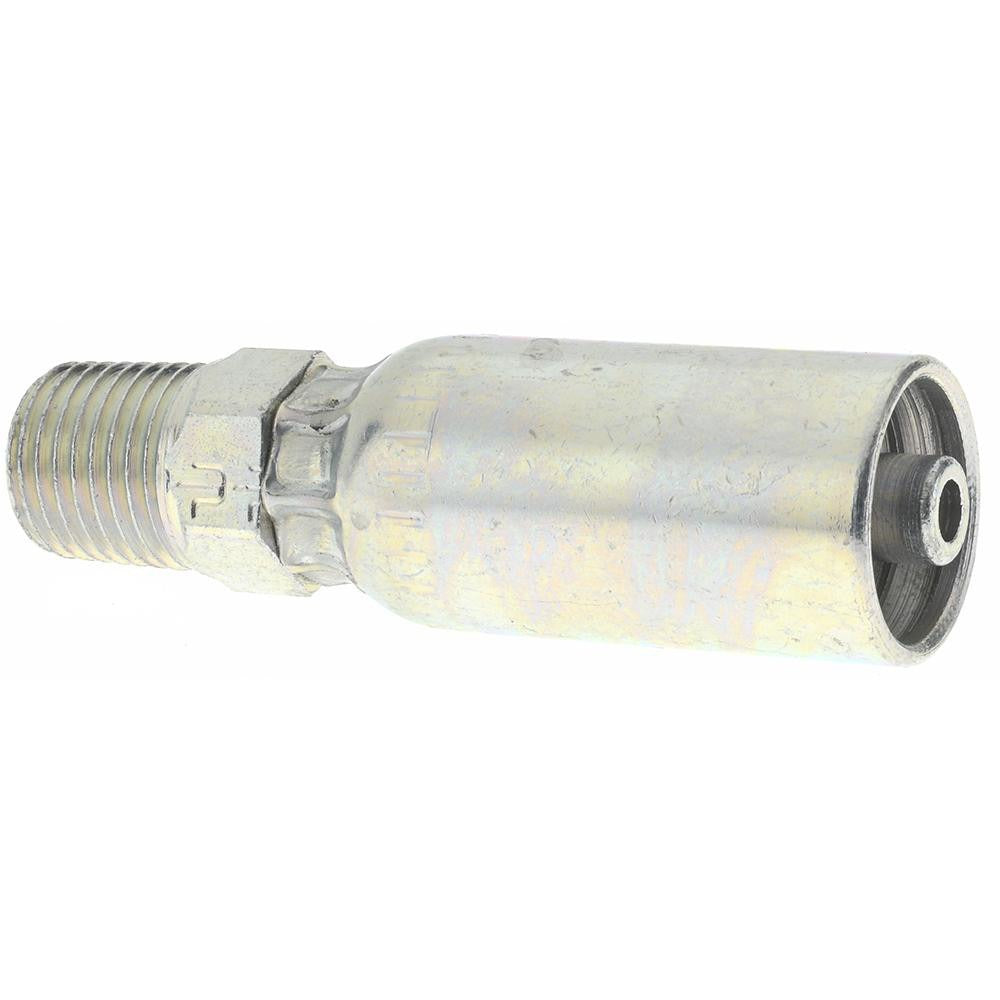

Parker PP-00089 Hydraulic Hose Mpt Fitting 3/8 in Steel

Product Description

The PARKER PP-00089 is a straight male pipe thread (MPT) hose fitting machined from steel for use in hydraulic systems. It features an NPTF threaded connection that forms a pressure-tight seal without the need for additional sealant tape in most applications. The fitting accepts a 3/8-inch inside diameter hose and measures 2.55 inches in overall length. It is designed for use by hydraulic technicians and industrial maintenance professionals working on mobile or stationary hydraulic circuits. The NPTF thread form engages mating female pipe ports found on pumps, cylinders, valves, and manifold blocks.

This fitting is suited for use in hydraulic plumbing assemblies where a hose-to-port connection is required. It is intended for use with Parker 801, 836, and 611HT hydraulic hose series. Typical installations include mobile equipment hydraulics, industrial machinery, and stationary power units where a straight inline connection is required between the hose end and a ported component. The straight configuration keeps the assembly compact where angular routing is not needed.

Key Features

• NPTF thread form provides a pressure-tight mechanical seal at the thread interface
• 3/8-inch (0.375 inch) hose inside diameter matches Parker hose size 6 designation
• Straight body shape allows direct inline hose-to-port connections
• Steel construction for durability in hydraulic service environments
• 2.55-inch overall length suits standard hydraulic assembly clearances
• Compatible with Parker 801, 836, and 611HT hydraulic hose series

Compatibility

Designed for use with Parker 801, 836, and 611HT hydraulic hoses with a 3/8-inch (size 6) inside diameter. Connects to standard NPTF female pipe thread ports.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. NPTF threads are designed to seal on the thread form itself; inspect threads for damage before assembly and follow the fitting manufacturer's recommended assembly practice. Verify hose series compatibility before crimping or swaging to avoid fitting-hose mismatch.
