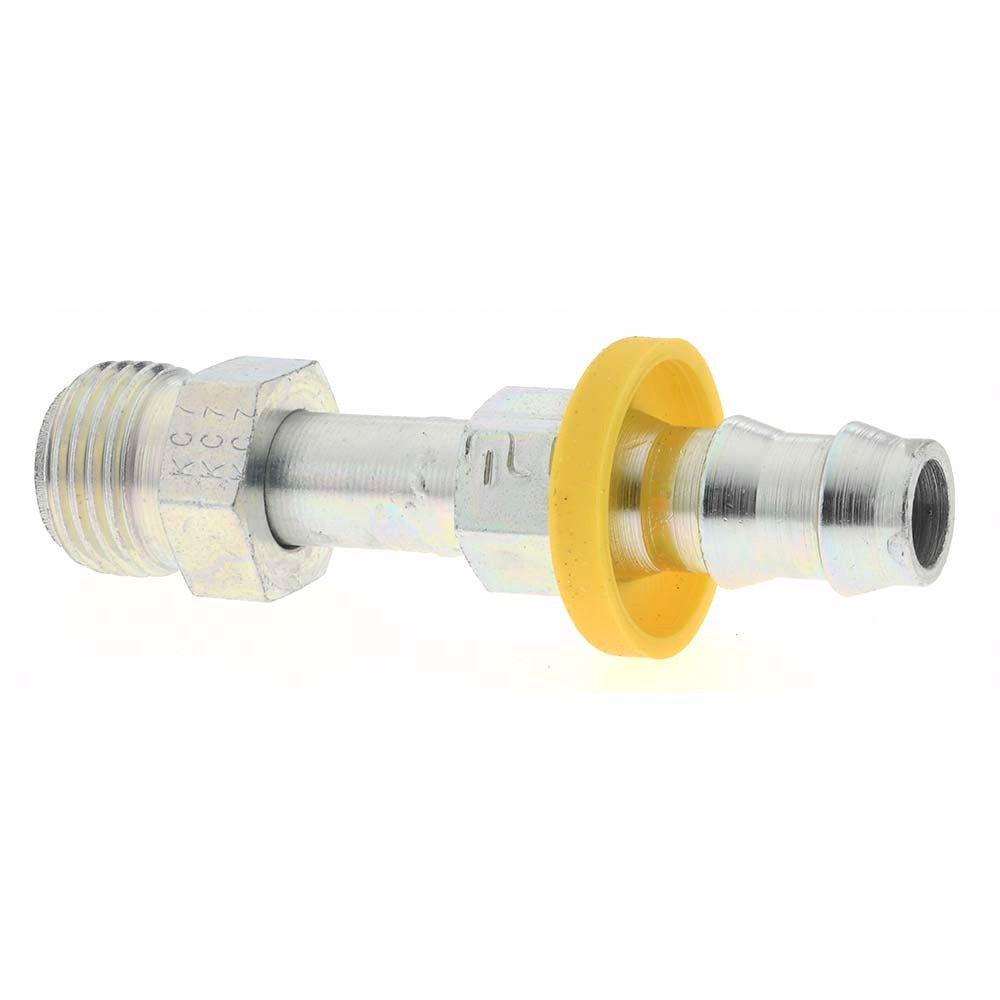

Parker PP-00062 Male Nptf Pipe Swivel Fitting 6mm 3/8-18

Product Description

The PARKER PP-00062 is a male NPTF pipe swivel fitting designed for hydraulic hose assemblies requiring a secure, leak-resistant threaded connection. Built from steel, this fitting accepts a 6 mm hose and threads into a 3/8-18 NPTF port. The swivel design allows the hose to be positioned without twisting the hose body during installation or routing. It is sized for use in medium-duty hydraulic circuits and is installed by hydraulic technicians and fluid power mechanics working on mobile or stationary equipment.

This fitting is suited for hydraulic plumbing applications where an NPTF male thread termination is required at the hose end. The 3/8-18 thread size is common in mid-range hydraulic circuits found in industrial machinery, agricultural equipment, and mobile hydraulic systems. The swivel feature simplifies assembly in tight or fixed-port installations where hose rotation must be avoided. It is sold in a package quantity of five units, making it appropriate for shop stock or multi-point repairs.

Key Features

• Male NPTF thread provides a dry-seal connection that resists leakage without additional sealant under normal conditions
• Swivel body design allows hose orientation adjustment without twisting the hose during assembly
• Steel construction provides strength suitable for hydraulic pressure applications
• 6 mm hose size compatibility fits common small-bore hydraulic hose assemblies
• 3/8-18 thread size matches widely used NPTF port specifications in hydraulic components
• Package quantity of five supports bench stock replenishment and multi-unit jobs

Compatibility

Designed as an OEM-style hydraulic hose fitting for use with 6 mm hydraulic hose assemblies terminating at 3/8-18 NPTF male threaded ports in industrial or mobile hydraulic systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and bleed the hydraulic circuit fully before removing or installing any fittings. Inspect the NPTF threads on both the fitting and the mating port for damage before assembly. Torque to the equipment manufacturer's specification for the port size and material; do not over-tighten, as NPTF threads are designed to seal by thread deformation and excessive torque can damage the port.
