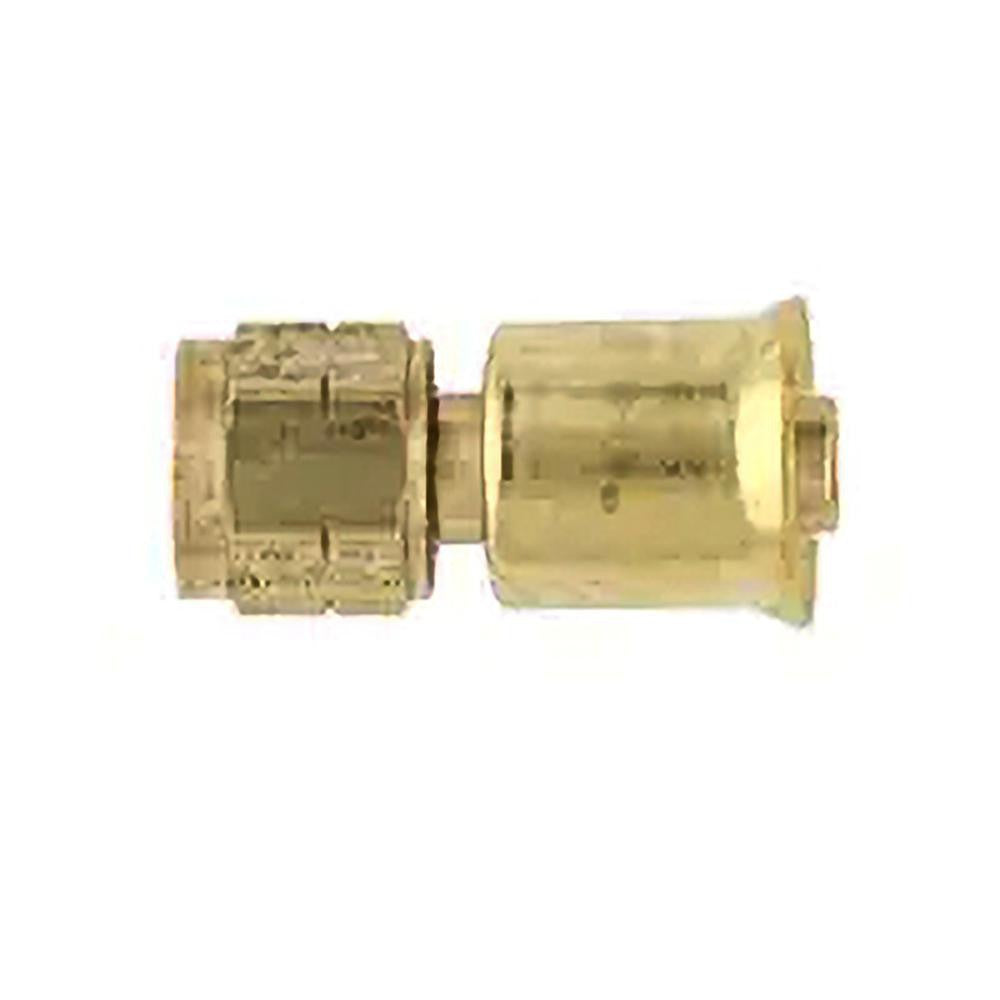

Parker PP-00008 Hydraulic Hose Swivel Fitting Brass

Product Description

The PARKER PP-00008 is a straight swivel fitting designed for hydraulic hose assemblies requiring a secure, leak-resistant threaded connection. Constructed from brass, this female-threaded fitting accepts a 1/2-inch (0.5 inch) inside diameter hose and uses a 3/4-20 thread size. The overall length is 1.59 inches. It is rated for use with Parker Series 25 hydraulic hose assemblies, specifically the 271 Hose. Installation is handled by hydraulic system technicians and fluid power mechanics in both industrial and mobile hydraulic applications.

This fitting is suited for hydraulic plumbing in equipment where swivel motion is required at the hose-to-port connection. The straight configuration makes it a direct, in-line solution. Typical install scenarios include mobile equipment, industrial machinery, and hydraulic power units where 271 Hose with an 8 mm hose size designation is already in use. The brass material provides adequate corrosion resistance for standard hydraulic fluid service.

Key Features

• Swivel design allows rotation at the connection point, reducing hose stress during assembly
• Brass construction offers corrosion resistance for standard hydraulic fluid compatibility
• 3/4-20 female threaded connection for secure, leak-resistant fitment
• Straight (in-line) shape for direct hose routing without angular offset
• Rated for use with Parker 271 Hose, Series 25
• Compact overall length of 1.59 inches suits tight installation spaces

Compatibility

Designed for use with Parker 271 Hose, Series 25, with a 1/2-inch (8 mm) hose inside diameter and 3/4-20 thread size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and bleed down the hydraulic system fully before removing or installing any fittings. Use appropriate wrenches on the fitting flats only — do not grip the swivel body in a vise or apply force to the swivel collar. Follow the equipment manufacturer's torque specifications and applicable fluid power standards such as those published by SAE International.
