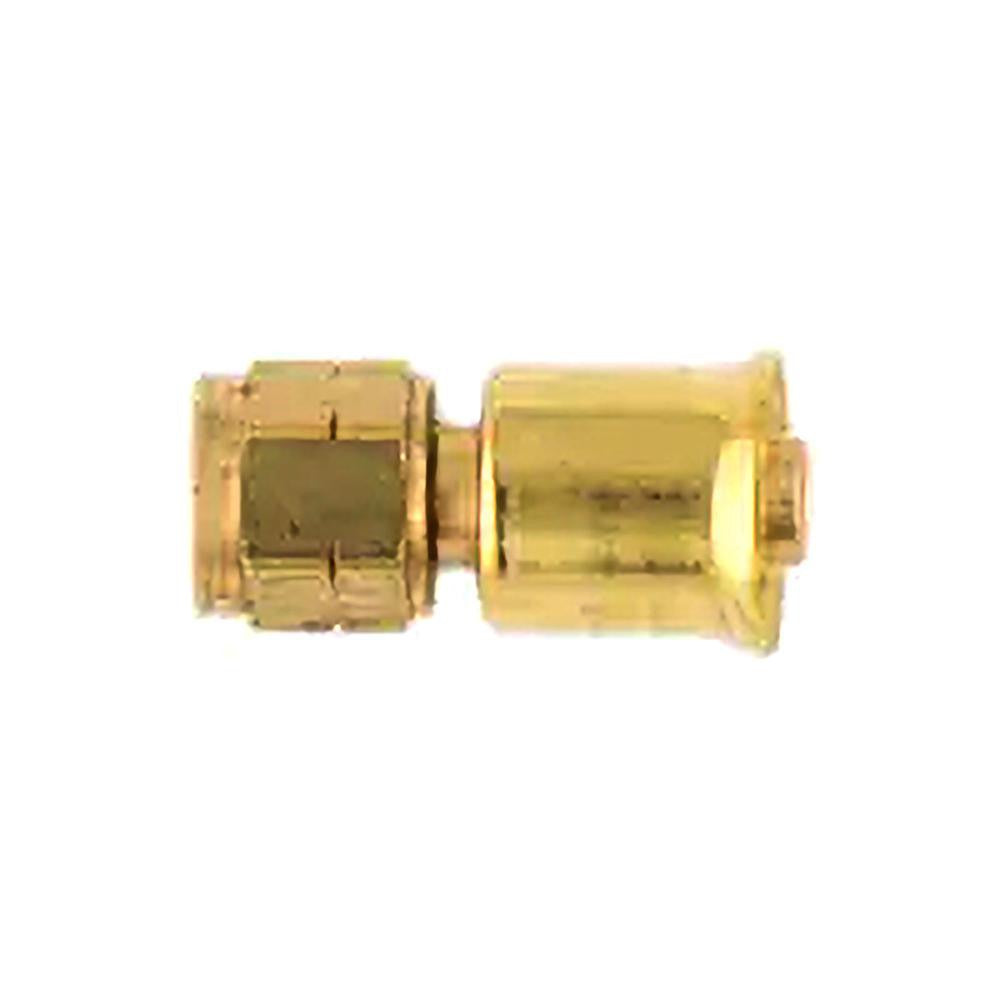

Parker PP-00006 Sae 45 Jic Swivel Fitting 3/8 in Brass

Product Description

The PARKER PP-00006 is a straight female SAE 45-degree JIC swivel fitting designed for hydraulic hose assemblies. Machined from brass, it provides a reliable threaded connection between a hydraulic hose and a mating JIC male fitting. The swivel design allows for rotational alignment during assembly, reducing the risk of hose twist and making installation easier in tight or awkward plumbing runs. Sized for a 3/8-inch (0.375 inches) inside-diameter hose, this fitting is rated for the Parker Series 25 product line and is compatible with Parker 271 hose. Overall length is 1.8 inches (46 mm). Sold in packages of five.

This fitting is used in hydraulic fluid power systems where a JIC 37-degree or SAE 45-degree flare-style connection is required at the hose end. Typical applications include industrial machinery, mobile equipment hydraulics, and fluid transfer lines where brass construction is acceptable for the fluid media and pressure rating involved. The straight configuration is suited for inline hose-to-port connections where no angular offset is needed. Hydraulic system assemblers and service technicians install this fitting when building or replacing hose assemblies on Parker 271 hose with a 3/8-inch bore.

Key Features

• SAE 45-degree JIC swivel design allows rotational positioning during assembly to prevent hose twist
• Brass construction provides corrosion resistance suitable for hydraulic fluid service
• Straight configuration for direct inline hose-to-port connections
• 3/4-16 thread size matches standard JIC male fittings
• Designed specifically for use with Parker 271 hose, Series 25
• Package quantity of five for bench stock and assembly operations

Compatibility

Designed for use with Parker 271 hose, Series 25, with a 3/8-inch (0.375 inches) inside diameter. Thread size is 3/4-16 SAE.

Installation Notes

Installation should be performed by a qualified hydraulic systems technician familiar with JIC swivel fitting assembly procedures. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any hose or fitting. Use appropriate wrenches on the hex flats only — do not apply torque to the hose or swivel body. Inspect the JIC seat and threads for damage before assembly and confirm hose compatibility before crimping or field attachment.
