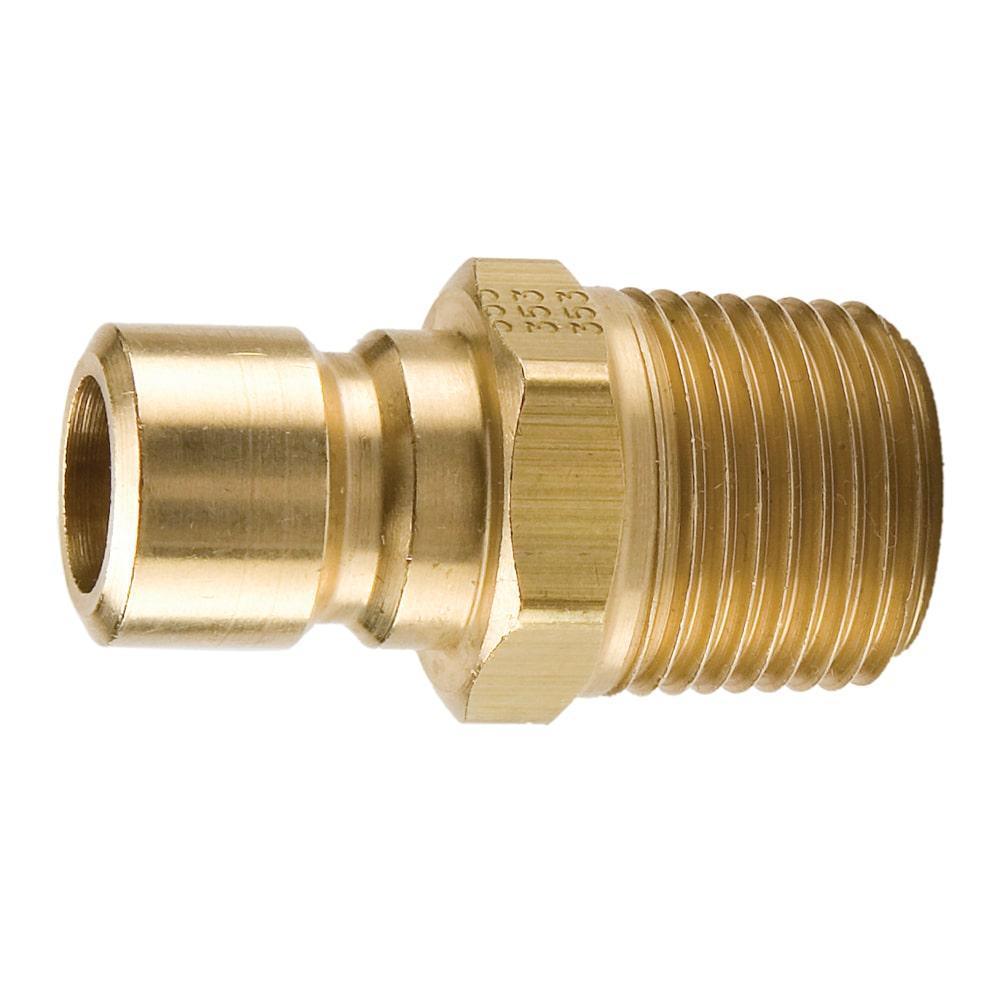

Parker PN251 Mold Coolant Quick Coupling, Brass

Product Description

The Parker PN251 is a mold coolant quick coupling designed to connect with industrial interchange nipples. This product is part of the 20 series quick couplers and is rated for pressures up to 300 psi. It features a manual sleeve and single shut-off mechanism, ensuring a secure connection with nipples that conform to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards.

• High flow with minimal pressure drop
• Integral sleeve guard to prevent accidental disconnection
• Versatile design suitable for various applications

Product Highlights

Use the Parker PN251 in a wide range of pneumatic applications, delivering reliability and efficient performance.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker HVAC Filtration

Technical Specifications

• MPN: PN251
• End Style: Male NPTF
• Finish: Zinc with Clear Trivalent Chromate
• Fitting/Connector Type: Coupler
• Length: 2.39 inches
• Material: Steel
• Nominal Size: 3/8-18
• Pressure Rating: 300 psi
• Series: 20 Series
• Temperature Rating: -40 to 250 degrees F
