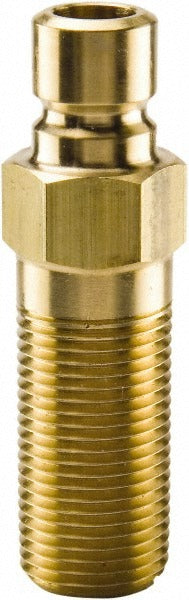

Parker PN250-40 Male Pipe Thread Extended Nipple Brass Nptf

Product Description

The PARKER PN250-40 is a male pipe thread extended nipple fitting designed for use in hydraulic hose assemblies and fluid transfer systems. Machined from brass with a straight body profile, this non-valved NPTF fitting carries a maximum working pressure of 200 psi and is rated for temperatures from -20 degrees F to 400 degrees F. The 1/4 inch body diameter pairs with a 1/16 inch NPTF thread, making it a compact, reliable connection point in pressurized coolant and hydraulic circuits. Licensed plumbers and hydraulic system technicians are the typical installers for this type of fitting.

The PN250-40 is part of the Parker Moldmate series, engineered specifically for die casting equipment and mold coolant lines. Its extended nipple design allows for connection in tight or recessed port locations common in mold tooling and cooling manifold setups. The straight configuration simplifies inline plumbing runs where angled fittings are not required. This fitting is sold individually and is suited for low-volume replacement or new build applications in industrial and manufacturing environments.

Key Features

• Brass construction for corrosion resistance in coolant and hydraulic media
• NPTF thread type ensures a pressure-tight, metal-to-metal seal without additional sealant
• Non-valved design allows unrestricted flow when connected
• Rated to 200 psi maximum working pressure
• Extended nipple body accommodates recessed or deep-port connections
• Wide temperature range: -20 degrees F to 400 degrees F

Compatibility

Designed for use with die casting equipment and mold coolant lines as part of the Parker Moldmate series. Compatible with 1/4 inch hose assemblies using NPTF threaded ports.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed plumber familiar with NPTF threaded fittings and applicable industry standards. Depressurize and drain the system fully before removing or installing any hydraulic or coolant fittings. NPTF threads are designed for dry-seal assembly, but confirm with the system manufacturer whether thread sealant is appropriate for the specific media in use. Inspect threads for damage before installation and do not cross-thread or overtighten.
