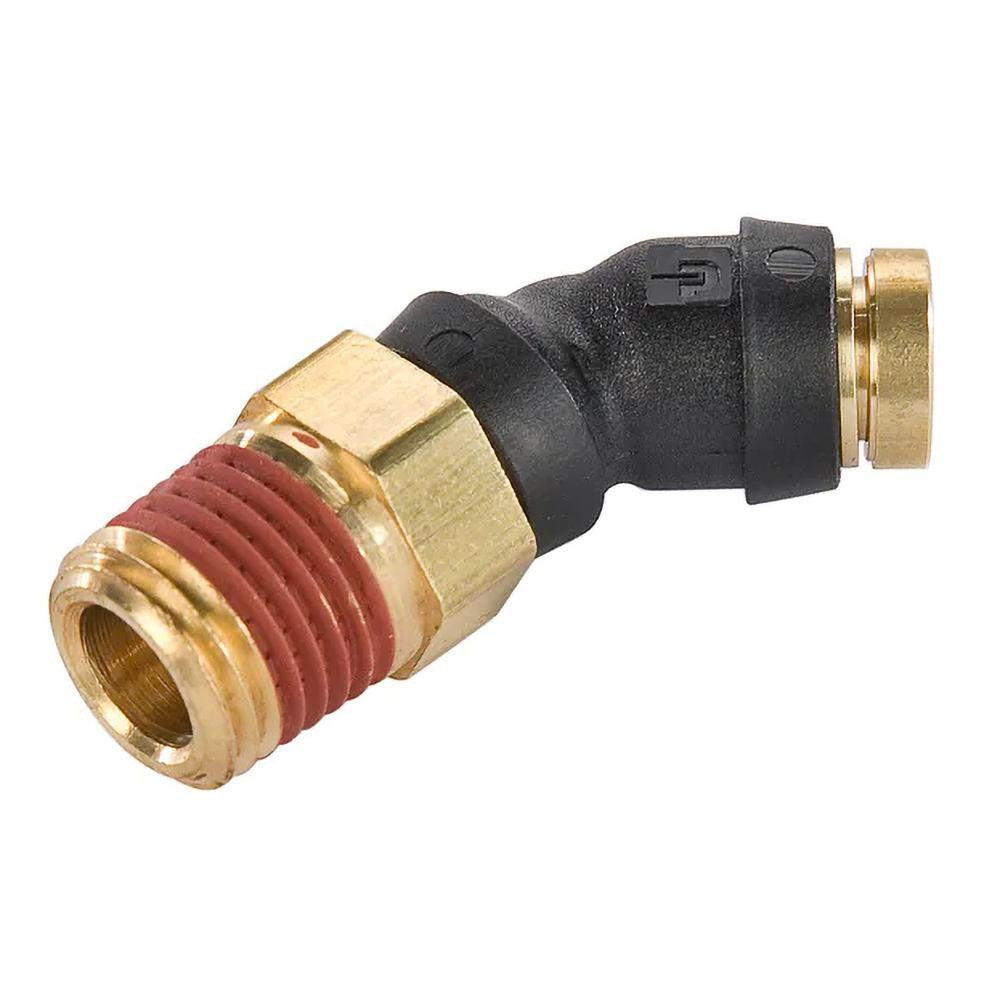

Parker PF-00084 Swivel 45 Male Elbow 1/2 Npt 3/8 Od Brass

Product Description

The PARKER PF-00084 is a push-to-connect swivel 45-degree male elbow tube fitting designed for use in pneumatic and fluid transfer lines. Constructed from brass, it connects 3/8-inch OD tubing to a 1/2-inch male NPT port at a 45-degree angle, allowing directional routing without bending or cutting tubing. The swivel design lets the fitting rotate during installation, simplifying alignment in tight spaces. Rated to 250 psi maximum working pressure, it meets D.O.T. FMVSS571.106, SAE J2494-3, and SAE J844 standards. Installed by HVAC technicians, plumbers, and fleet maintenance professionals working on air brake, refrigeration, or fluid control systems.

This fitting is suited for residential and commercial applications where tubing must change direction at a 45-degree angle and connect to a male NPT threaded port. The push-to-connect end accepts 3/8-inch OD tubing for fast, tool-free tube insertion. The swivel body accommodates difficult approach angles common in equipment installations. It performs across a service temperature range of -40 degrees F to 200 degrees F, making it viable for both refrigeration lines and compressed air circuits in demanding environments.

Key Features

• Push-to-connect end accepts 3/8-inch OD tubing without tools or ferrules
• Swivel body rotates during installation for easy alignment to NPT port
• 45-degree elbow geometry routes tubing away from obstructions
• Brass construction provides corrosion resistance for air, water, and compatible fluid service
• Rated to 250 psi maximum working pressure
• Compliant with D.O.T. FMVSS571.106, SAE J2494-3, and SAE J844 standards

Compatibility

Designed for use with 3/8-inch OD tubing and 1/2-inch male NPT threaded ports in pneumatic, air brake, and fluid control systems meeting D.O.T. and SAE J844 tubing requirements.

Installation Notes

Installation is performed by licensed HVAC technicians, plumbers, or qualified mechanical technicians. Depressurize and isolate the line completely before removing any existing fittings or inserting tubing into the push-to-connect end. Ensure tubing is cut cleanly and squarely with no burrs before insertion, as debris can compromise the internal collet seal. Verify that NPT threads are properly taped or sealed with an appropriate thread sealant per applicable codes before torquing the fitting body.
