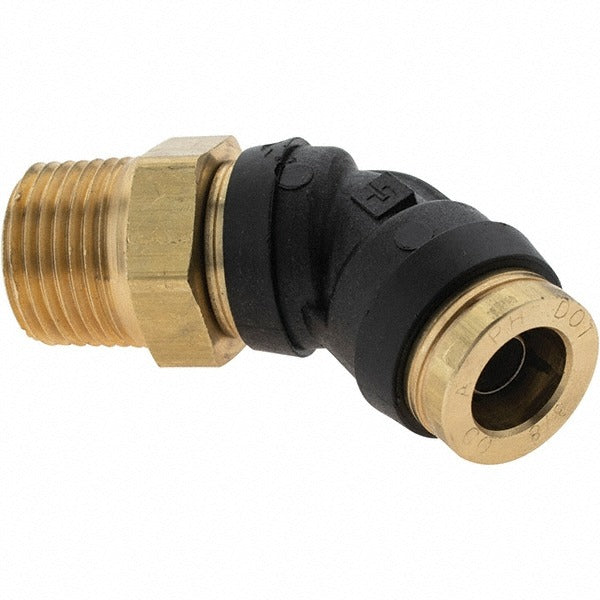

Parker PF-00083 Swivel 45 Male Elbow 3/8 in Od Brass Ptc

Product Description

The PARKER PF-00083 is a push-to-connect swivel 45-degree male elbow tube fitting manufactured in brass. It provides a tube-to-male NPT connection with a second tube port, allowing a directional change in a pneumatic or fluid line without requiring additional tools for the tube connections. The fitting is rated to 250 psi maximum working pressure and handles temperatures from -40 degrees F to 200 degrees F. The swivel design on the MNPT end simplifies installation in tight or angled plumbing runs. Licensed trades including HVAC technicians and plumbers rely on push-to-connect fittings for fast, repeatable connections in both service and new-construction work.

This fitting is suited for use in compressed air lines, pneumatic control circuits, and fluid transfer systems where a 45-degree change of direction is required at a threaded port. The tube-to-MNPT configuration allows it to interface with standard NPT-threaded ports on valves, manifolds, and equipment panels. With a 3/8-inch outside diameter tube connection and 3/8-inch MNPT thread, it fits commonly encountered tubing and ported components in light commercial and residential HVAC and refrigeration applications.

Key Features

• Push-to-connect tube ends accept 3/8-inch OD tubing without ferrules or compression sleeves
• Swivel MNPT end allows thread engagement without rotating the tubing
• 45-degree elbow angle eases routing in confined equipment spaces
• Brass construction provides corrosion resistance for air and compatible fluid service
• Rated to 250 psi working pressure across a wide temperature range of -40 degrees F to 200 degrees F
• Meets D.O.T. FMVSS571.106, SAE J2494-3, and SAE J844 standards

Compatibility

Designed as an OEM-style push-to-connect replacement fitting for pneumatic and fluid systems using 3/8-inch OD tubing with 3/8-inch MNPT ported connections.

Installation Notes

Installation should be performed by a qualified HVAC technician or plumber. Always depressurize and isolate the system before removing or installing any fitting. Insert tubing fully to the depth stop to ensure a secure push-to-connect seal; confirm engagement with a gentle pull-back test before repressurizing. Refer to applicable codes, including IFGC and relevant SAE standards, for system-specific requirements.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
