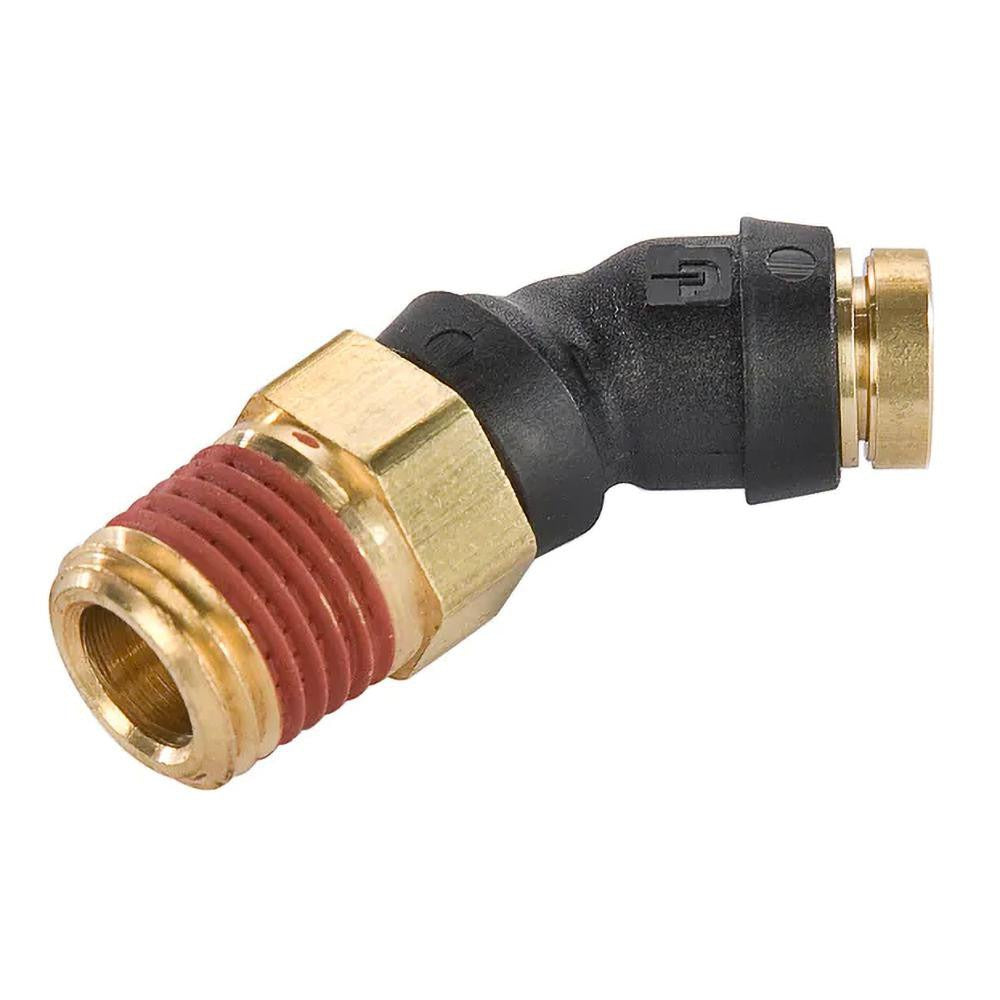

Parker PF-00080 Swivel 45 Elbow Push-to-connect 1/4 in Brass

Product Description

The PARKER PF-00080 is a brass swivel 45-degree male elbow push-to-connect tube fitting designed for pneumatic and fluid transfer lines. It connects 1/4-inch OD tubing to a 1/4-inch male NPT port with a swivel function that allows the fitting body to rotate during installation, reducing tubing stress and simplifying routing in tight spaces. Rated to 250 psi maximum working pressure, this fitting handles service temperatures from -40 degrees F to 200 degrees F. It is built to DOT FMVSS 571.106, SAE J2494-3, and SAE J844 standards, making it suitable for air brake and fluid system applications where compliance is required.

This fitting is used in compressed air lines, pneumatic control circuits, and hydraulic fluid circuits on commercial vehicles, mobile equipment, and stationary equipment. The push-to-connect design allows tubing to be inserted and locked without tools, speeding up assembly and service calls. It is sold in a package quantity of six units per pack, with a minimum order quantity of one pack. Plumbers, HVAC technicians, and fleet mechanics working on air or fluid lines are the primary installers of this type of fitting.

Key Features

• Swivel body rotates during assembly to reduce tubing twist and installation stress
• Push-to-connect design locks 1/4-inch OD tubing without tools
• 250 psi maximum working pressure for use in compressed air and fluid lines
• Operating range of -40 degrees F to 200 degrees F covers most service environments
• Meets DOT FMVSS 571.106, SAE J2494-3, and SAE J844 standards
• Brass construction for corrosion resistance in air and water service

Compatibility

Designed for use with 1/4-inch OD tubing and 1/4-inch male NPT threaded ports on pneumatic and fluid transfer systems meeting DOT and SAE J844 requirements.

Installation Notes

Installation is performed by a licensed technician or qualified mechanic familiar with compressed air or fluid line systems. Depressurize and isolate the system completely before removing or installing any fitting. Insert tubing fully to the tube stop before pressurizing to ensure proper engagement of the internal collet. Inspect the connection for leaks at operating pressure before returning the system to service.
