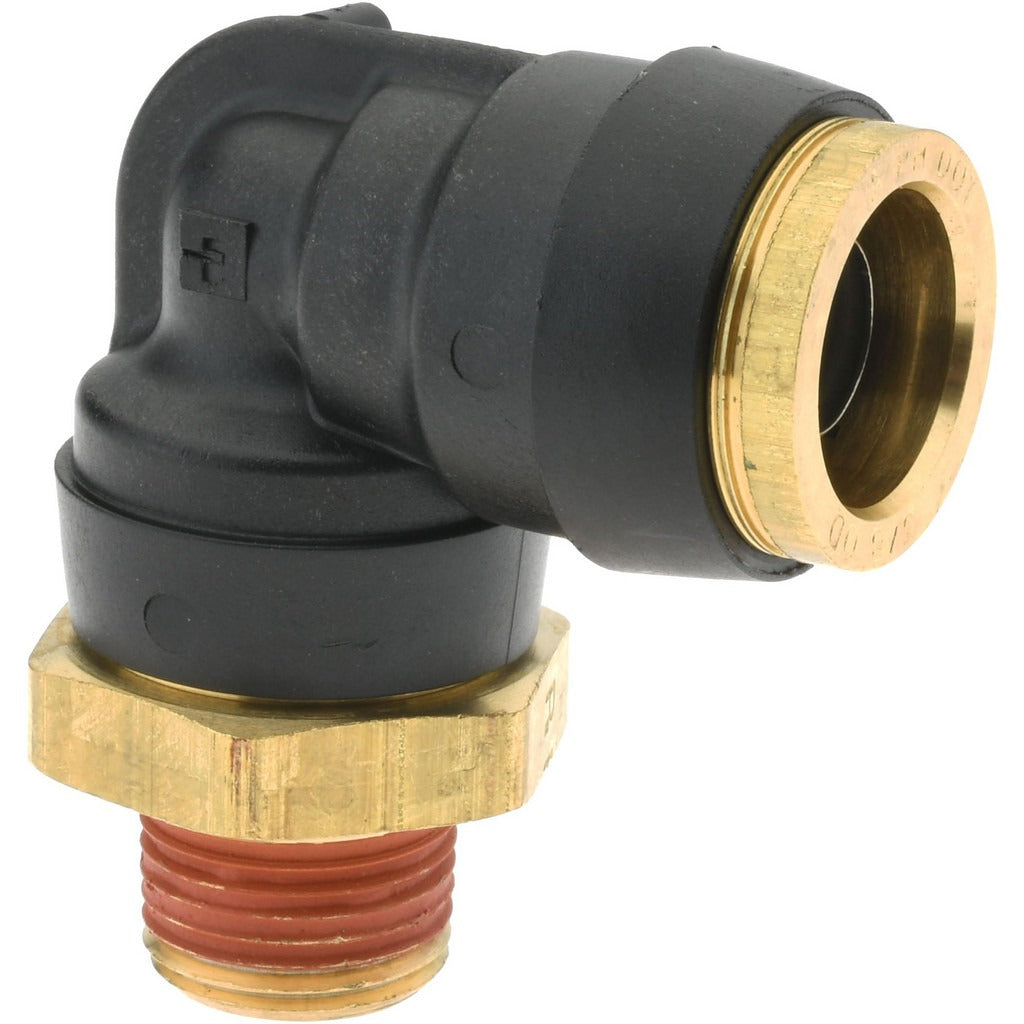

Parker PF-00063 90 Swivel Elbow 5/8in Od 3/8in Mnpt Brass

Product Description

The PARKER PF-00063 is a 90-degree swivel male elbow push-to-connect tube fitting constructed from brass. It connects tubing with a 5/8 inch outside diameter to a 3/8 inch male NPT port, allowing a swivel action that simplifies routing and reduces stress on the tubing. Rated to 250 psi maximum working pressure, this fitting handles a temperature range from -40 degrees F to 200 degrees F. It is designed for use in pneumatic tubing systems and meets D.O.T. FMVSS571.106, SAE J2494-3, and SAE J844 standards. Licensed plumbers, HVAC technicians, and pneumatic system installers are the typical trades that specify this type of fitting.

This fitting is suited for both residential and light commercial pneumatic and fluid transfer applications where a 90-degree directional change is required. The push-to-connect design speeds up installation by eliminating the need for ferrules or compression sleeves at the tube end. The swivel male NPT thread end allows the installer to align the fitting to the mating port without twisting the tubing. It is commonly used in brake line, air line, and general pneumatic plumbing assemblies that call for SAE J844-compliant components.

Key Features

• Push-to-connect tube end accepts 5/8 inch OD tubing without ferrules or additional hardware
• 90-degree swivel elbow allows directional routing and reduces tubing stress
• 3/8 inch male NPT thread for standard port connections
• Brass construction for corrosion resistance in pneumatic and fluid service
• Rated to 250 psi maximum working pressure
• Compliant with D.O.T. FMVSS571.106, SAE J2494-3, and SAE J844 standards

Compatibility

Designed as an OEM-style replacement or service fitting for pneumatic tubing systems requiring a 5/8 inch OD tube by 3/8 inch MNPT push-to-connect 90-degree swivel elbow in compliance with SAE J844 and D.O.T. FMVSS571.106 specifications.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid line systems. Depressurize and isolate the system completely before removing or installing any fittings. Ensure the tubing end is cut cleanly and squarely and is free of burrs before inserting into the push-to-connect end. Apply appropriate thread sealant to the male NPT threads in accordance with the system fluid compatibility and applicable codes.
