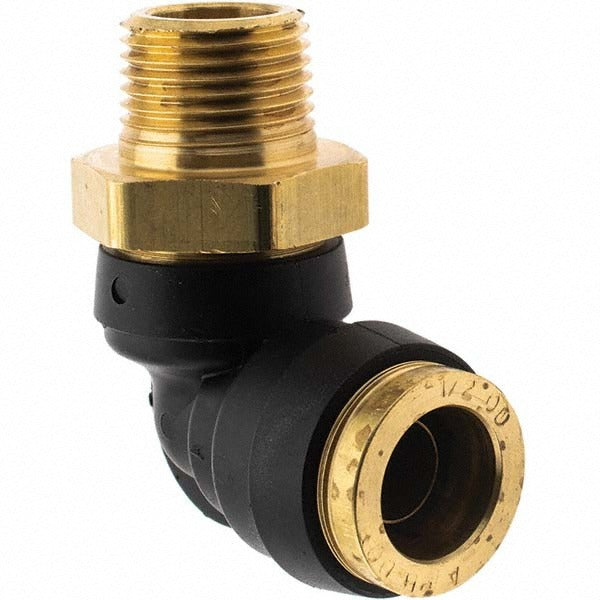

Parker PF-00061 90 Swivel Male Elbow 1/2 in Od 3/8 in Npt

Product Description

The PARKER PF-00061 is a brass 90-degree swivel male elbow push-to-connect tube fitting designed for quick, tool-free tube connections in pneumatic and fluid transfer lines. It accepts 1/2-inch OD tubing on both tube ends and connects to a 3/8-inch male NPT port, allowing a 90-degree change in line direction with a swivel joint that simplifies alignment during installation. Rated to 250 psi maximum working pressure, this fitting handles a wide service temperature range from -40 degrees F to 200 degrees F. It is suited for compressed air, pneumatic controls, and compatible fluid systems in commercial and industrial applications.

This fitting is commonly used in pneumatic plumbing runs where a right-angle connection to a male NPT port is required without cutting or flaring tubing. The push-to-connect design allows technicians to insert the tube and achieve a leak-resistant connection in seconds, reducing labor time on installations involving multiple fittings. It is appropriate for use in HVAC pneumatic control lines, industrial automation, and vehicle air brake systems where DOT and SAE standards apply. The package contains 6 fittings per unit, making it practical for multi-point installations.

Key Features

• 90-degree swivel male elbow allows directional routing and post-installation alignment adjustment
• Push-to-connect design accepts 1/2-inch OD tubing without tools or additional fittings
• 3/8-inch male NPT thread connects directly to standard NPT female ports
• Brass construction provides corrosion resistance and durability in pneumatic and compatible fluid systems
• Rated to 250 psi maximum working pressure
• Meets DOT FMVSS571.106, SAE J2494-3, and SAE J844 standards

Compatibility

Designed for use with 1/2-inch OD tubing and 3/8-inch female NPT ports in pneumatic and fluid transfer systems meeting DOT FMVSS571.106, SAE J2494-3, and SAE J844 requirements.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or qualified pneumatic system technicians. Depressurize and isolate the line before removing or installing any fittings. Ensure tubing is cut cleanly and squarely with no burrs before inserting into the push-to-connect end to maintain a proper seal. Apply appropriate thread sealant to the male NPT threads per system requirements and applicable codes.
