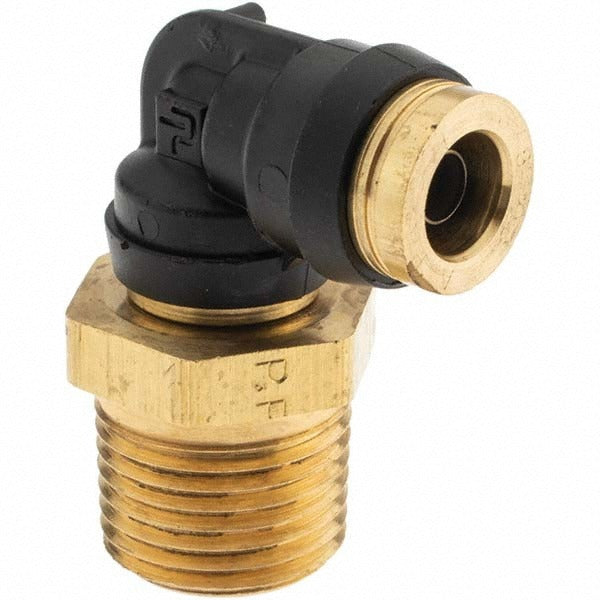

Parker PF-00059 90 Swivel Elbow Push-to-connect 3/8 Od

Product Description

The PARKER PF-00059 is a 90-degree swivel male elbow push-to-connect tube fitting manufactured from brass. It joins tubing to a male NPT threaded port in a right-angle configuration, making it well suited for routing lines in tight spaces where a straight fitting will not clear adjacent components. The fitting accepts 3/8 inch OD tubing on the push-to-connect end and threads into a 1/2 inch MNPT port. It is rated to 250 psi working pressure and handles temperatures from -40 degrees F to 200 degrees F. HVAC technicians, plumbers, and pneumatic system installers use this fitting when directional changes in tubing runs are required without the need for additional union hardware.

This fitting is used in fluid and pneumatic tubing applications across residential and light commercial systems. Its push-to-connect design allows fast, tool-free tube insertion on the tubing side, while the swivel male NPT end permits alignment adjustment without twisting the tubing run. Common applications include refrigerant line accessories, compressed air distribution, hydraulic control lines, and general-purpose fluid conveyance where the D.O.T. FMVSS571.106, SAE J2494-3, and SAE J844 standards apply. Each package contains 6 fittings with a minimum order quantity of 1.

Key Features

• 90-degree swivel male elbow allows angular alignment without stressing the tubing
• Push-to-connect tube end enables fast, tool-free tube insertion and removal
• Brass construction provides corrosion resistance for fluid and air service
• 250 psi maximum working pressure suitable for a wide range of pneumatic and fluid systems
• Wide temperature range: -40 degrees F to 200 degrees F
• Meets D.O.T. FMVSS571.106, SAE J2494-3, and SAE J844 standards

Compatibility

Designed for use with 3/8 inch OD tubing systems and 1/2 inch MNPT threaded ports in pneumatic, fluid conveyance, and HVAC accessory applications meeting D.O.T. and SAE J844 tubing standards.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid piping systems. Depressurize and isolate the system completely before removing or installing any fittings. Ensure the male NPT threads are clean and properly prepared before engagement; apply thread sealant as required by the applicable system specification. Insert tubing fully to the push-to-connect stop before pressurizing the line and verify there are no leaks at working pressure.
