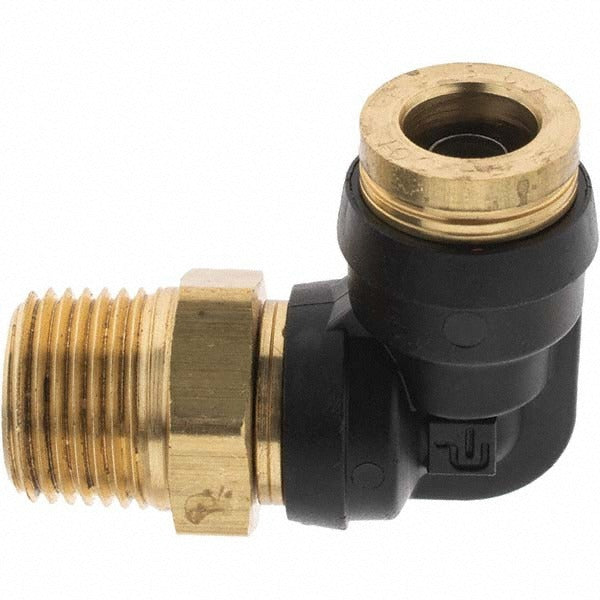

Parker PF-00058 90 Swivel Male Elbow 3/8 in Od Brass Fitting

Product Description

The PARKER PF-00058 is a 90-degree swivel male elbow push-to-connect tube fitting manufactured from brass. It connects tubing with a 3/8 inch outside diameter to a 3/8 inch male NPT port, providing a right-angle directional change in a fluid or air line. The swivel design allows for rotational adjustment after assembly, which simplifies alignment in tight or awkward plumbing runs. Rated to 250 psi maximum working pressure, this fitting is suited for pneumatic and hydraulic lines in trade, fleet, and industrial service environments. Licensed technicians working on compressed air, brake line, or fluid transfer systems are the primary installers.

This fitting is used in applications where a tube line must transition from a straight run to a 90-degree angle while terminating at a male NPT threaded port. Typical install scenarios include compressed air distribution, vehicle brake systems, and fluid transfer plumbing in commercial and light industrial settings. The push-to-connect end accepts 3/8 inch OD tubing without additional ferrules or tools. The swivel male end threads into a fixed NPT female port, with the body free to rotate until the tube is fully inserted and locked. It is sold in packages of 6 units per order.

Key Features

• 90-degree swivel elbow configuration for directional routing and post-assembly alignment
• Push-to-connect end accepts 3/8 inch OD tubing with no ferrule or compression tool required
• 3/8 inch male NPT thread for connection to standard NPT female ports
• Brass construction for corrosion resistance in air and fluid service
• Rated to 250 psi maximum working pressure
• Temperature range: -40 degrees F to 200 degrees F
• Compliant with D.O.T. FMVSS571.106, SAE J2494-3, and SAE J844 standards

Compatibility

Designed for use with 3/8 inch OD tubing and 3/8 inch female NPT ports in pneumatic, brake line, and fluid transfer systems meeting D.O.T. FMVSS571.106, SAE J2494-3, and SAE J844 requirements.

Installation Notes

Installation is performed by plumbers, pipefitters, or qualified fleet maintenance technicians. Depressurize and isolate the line completely before removing any existing fitting or inserting tubing into the push-to-connect end. Thread the male NPT end into the female port using appropriate thread sealant per the applicable code; do not overtighten. Verify tubing is cut square and deburred before inserting into the push-to-connect end to ensure a proper seal.
