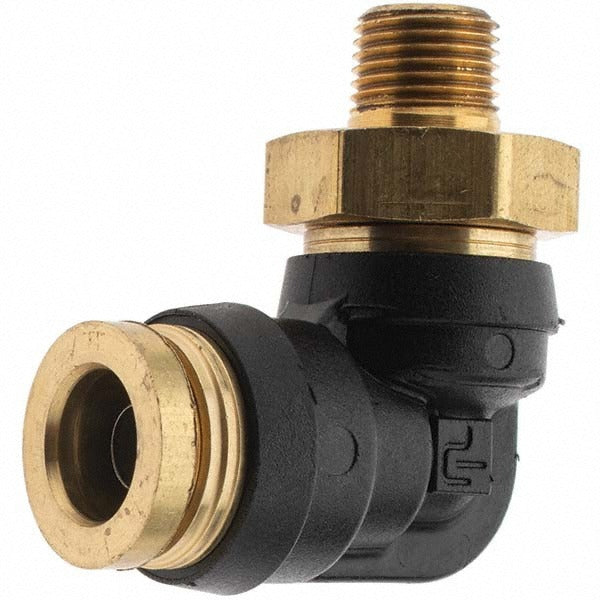

Parker PF-00056 90 Swivel Elbow 3/8in Od 1/8in Npt Brass

Product Description

The PARKER PF-00056 is a 90-degree swivel male elbow push-to-connect tube fitting designed for use in pneumatic and fluid transfer lines. Constructed from brass, it connects tubing with a 3/8 inch outside diameter to a 1/8 inch male NPT port. The swivel design allows the threaded end to rotate after installation, simplifying routing and reducing torque stress on connected tubing. Rated to 250 psi maximum working pressure, it is suitable for air brake, pneumatic control, and general fluid-handling applications. Licensed HVAC technicians, plumbers, and fleet maintenance professionals regularly use this fitting in both new installations and service work.

The PF-00056 is suited for residential and light commercial pneumatic systems, air brake assemblies, and compressed air lines where a compact 90-degree directional change is needed. It meets D.O.T. FMVSS571.106, SAE J2494-3, and SAE J844 standards, making it appropriate for commercial vehicle air brake circuits as well as general-purpose pneumatic plumbing. The push-to-connect design allows for tool-free tube insertion while the swivel NPT male end threads into standard pipe ports.

Key Features

• Push-to-connect design accepts 3/8 inch OD tubing without additional tools for tube insertion
• 90-degree swivel male elbow allows post-installation rotation to ease line routing
• Brass construction provides corrosion resistance in air and compatible fluid service
• Rated to 250 psi maximum working pressure
• Operating temperature range of -40 degrees F to 200 degrees F
• Meets D.O.T. FMVSS571.106, SAE J2494-3, and SAE J844 standards

Compatibility

Designed for use with 3/8 inch OD tubing and 1/8 inch male NPT ported components in pneumatic and fluid transfer systems meeting D.O.T. FMVSS571.106, SAE J2494-3, and SAE J844 specifications.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid plumbing systems. Depressurize and isolate the line completely before removing or installing any fitting. Thread the male NPT end into the receiving port using an appropriate wrench on the hex flats; do not grip the fitting body. Confirm the tube is fully seated in the push-to-connect collet before returning the system to service.
