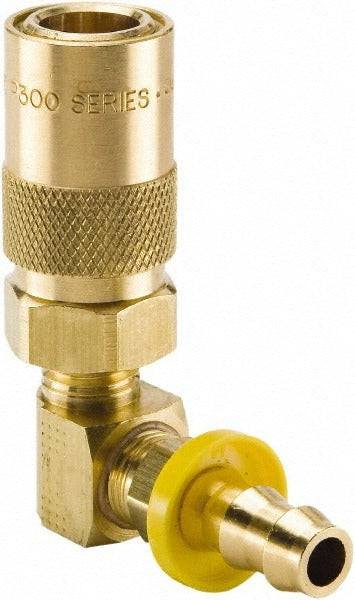

Parker PC516-BP 90 Deg Push-lok Hose Barb Coupler 0.75in

Product Description

The PARKER PC516-BP is a 90-degree Push-Lok hose barb coupler designed for use in hydraulic and fluid control applications requiring reliable, leak-resistant connections under moderate pressure. Built from solid brass, this non-valved coupler accepts a 0.75-inch inside diameter hose and delivers a maximum working pressure of 200 psi. The threaded body connection and 0.5-inch coupler size make it a straightforward fit for controlled-flow systems. Licensed HVAC, plumbing, and industrial technicians working with coolant or fluid transfer lines will find the PC516-BP a dependable, OEM-quality component for quick-connect configurations.

The PC516-BP is engineered for use in die casting equipment and mold coolant lines, where consistent flow and temperature resilience are critical. Its Parker Moldmate series designation indicates suitability for industrial coolant circuit work. The operating temperature range spans -20 degrees F to 400 degrees F, making it appropriate for both chilled coolant and elevated-temperature mold cooling loops. This coupler is typically installed by industrial maintenance technicians and plumbers working on closed-loop cooling systems in manufacturing environments.

Key Features

• 90-degree Push-Lok hose barb design for quick, secure hose attachment without clamps
• Brass construction provides corrosion resistance in coolant and hydraulic fluid environments
• 200 psi maximum working pressure suits standard mold cooling and die casting circuits
• Wide temperature range: -20 degrees F to 400 degrees F
• Non-valved design allows unrestricted flow when connected
• Part of the Parker Moldmate series, purpose-built for industrial mold coolant lines

Compatibility

Designed for use with die casting equipment and mold coolant lines. Compatible with 0.75-inch inside diameter Push-Lok hose. Part of the Parker Moldmate series for industrial fluid control applications.

Installation Notes

Installation should be performed by a qualified industrial plumber or maintenance technician familiar with hydraulic and coolant systems. Depressurize and drain the coolant circuit completely before removing or installing any fittings. Verify that the mating hose inside diameter matches the 0.75-inch barb specification before seating the Push-Lok connection. Follow applicable plumbing codes and equipment manufacturer guidelines for fitting torque and system pressure testing after installation.
