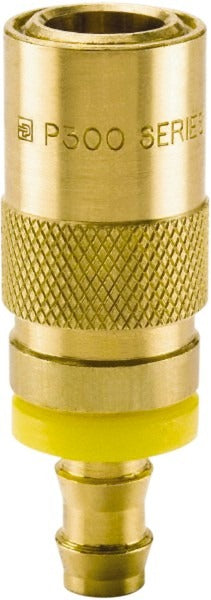

Parker PC506-BP Push-lok Hose Barb Straight Coupler Brass

Product Description

The PARKER PC506-BP is a brass Push-Lok hose barb straight coupler designed for use in fluid handling and cooling applications. It accepts a 0.75-inch inside diameter hose and delivers a maximum working pressure rating of 200 psi. The coupler body has a 0.5-inch diameter and features a non-threaded shaft with a threaded connection type for secure, leak-resistant assembly. Rated for temperatures from -20 degrees F to 400 degrees F, this fitting is built for demanding thermal cycling environments. It weighs 0.52 pounds and is sold individually. Plumbers, hydraulic technicians, and industrial maintenance professionals install this fitting in process piping and cooling circuits.

The PC506-BP belongs to the Parker Moldmate series, which is engineered specifically for die casting equipment and mold coolant lines. It is well suited for industrial cooling circuits where reliable push-on hose connections are needed under moderate pressure. The straight coupler geometry simplifies routing in tight spaces, and the brass construction resists corrosion in water-based coolant service. This fitting is a common choice for mold temperature control units and similar process cooling setups found in light manufacturing environments.

Key Features

• Brass construction for corrosion resistance in water-based coolant and hydraulic fluid service
• 0.75-inch hose inside diameter accommodates standard push-on hose assemblies
• 200 psi maximum working pressure suits die casting and mold cooling circuit requirements
• Wide temperature range from -20 degrees F to 400 degrees F supports thermal cycling applications
• Straight coupler body simplifies hose routing in confined equipment installations
• Part of the Parker Moldmate series, purpose-built for die casting and mold coolant line applications

Compatibility

Designed for use with die casting equipment and mold coolant lines as part of the Parker Moldmate series. Accepts 0.75-inch inside diameter push-on hose with a threaded body connection.

Installation Notes

This fitting should be installed by a qualified hydraulic or industrial piping technician. Before servicing any coolant or hydraulic line, relieve system pressure completely and isolate the line from the fluid supply. Verify that the hose inside diameter and pressure rating are compatible with the system before assembly. Follow applicable industry standards and equipment manufacturer guidelines for fluid system connections.
